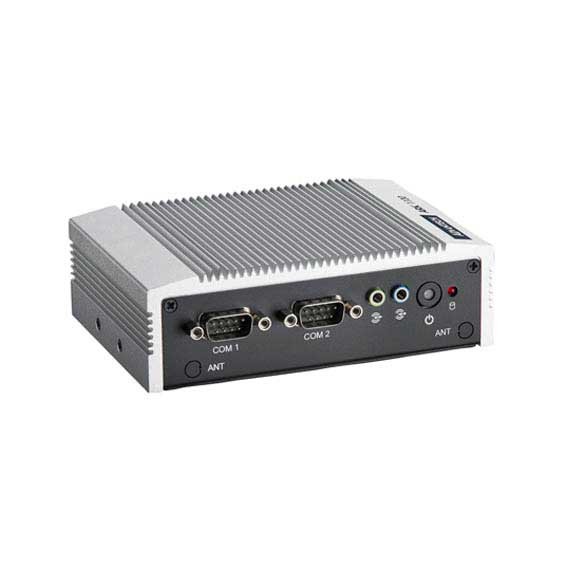

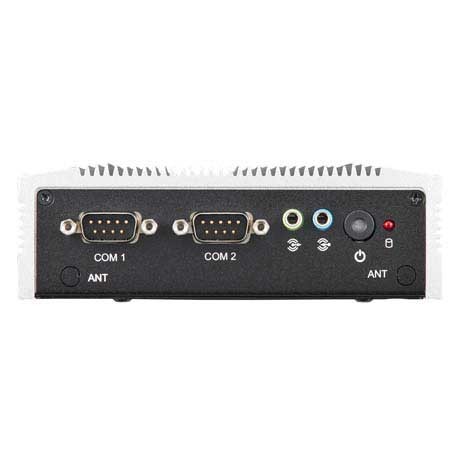

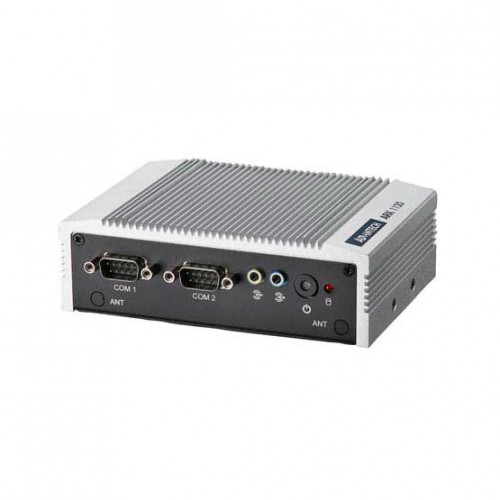

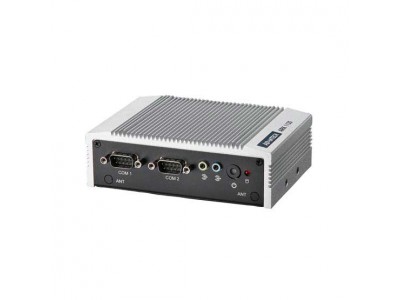

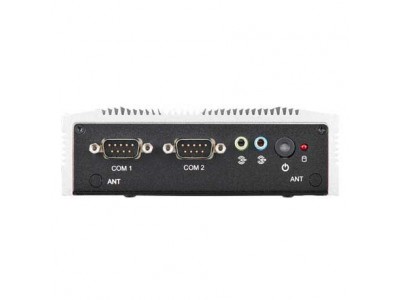

ARK-1120-3S50 | Intel® Atom N455 Fanless Ultra Compact Embedded Computer with Mini-PCIe by Advantech

Base System

Intel Atom N455 Ultra Compact Fanless Embedded IPC with 2 COM, 4 USB, Audio and Half Size Mini-PCIe Slot
- COMPUTER SYSTEM, Intel Atom N455 1.66GHz w/ 2COM+4USB+LAN+Audio $321.75 x1
Intel Atom N455 Ultra Compact Fanless Embedded IPC with 4 COM, 2 USB and Half Size Mini-PCIe Slot
- COMPUTER SYSTEM, Intel Atom N455 1.66GHz w/ VGA+4COM+2USB+LAN $341.55 x1

CPU

Built-in Intel® Atom™ N455 Processor 1.66GHz

Memory

DDR3-1333MHz 1GB (1 x 1GB) non-ECC non-Register 204-PIN
- 1G SO-DDR3-1333 204PIN 128X8 SAM(G) $23.76 x1
DDR3-1333MHz 2GB (1 x 2GB) non-ECC non-Register 204-PIN
- 2G SO-DDR3-1333 204PIN 256X8 HYX(G) $40.59 x1
MEMORY MODULE, SQRAM 1G SO-DDR3-1333 INDUSTRIAL GRADE
- MEMORY MODULE, SQRAM 1G SO-DDR3-1333 I-GRD SAM-G $36.63 x1
MEMORY MODULE, SQRAM 2G SO-DDR3-1333 INDUSTRIAL GRADE
- MEMORY MODULE, SQRAM 2G SO-DDR3-1333 I-GRD SAM $45.54 x1

Hard Disk Drive

None
1 x 2.5' 500GB SATA HDD with 5K RPM and 16MB cache
- CABLE/WIRE, M Cable SATA 7P(W/LOCK)/SATA 7P 60CM C=R 180/180 $9.90 x1
- HARD DRIVE, SG 500G 2.5' SATAIII 5KRPM 16MB 7MM 4K $63.36 x1

Solid State Disk (2.5' SSD Hard Drive)

None
8GB Advantech 2.5' SATA SSD Drive (SLC, -40 ~ 85C)
- CABLE/WIRE, M Cable SATA 7P(W/LOCK)/SATA 7P 60CM C=R 180/180 $9.90 x1
- SOLID STATE DISK, SQF 2.5' SATA SSD 8G SLC (-40~85C) $111.87 x1
16GB Advantech 2.5' SATA SSD Drive (SLC, -40 ~ 85C)
- CABLE/WIRE, M Cable SATA 7P(W/LOCK)/SATA 7P 60CM C=R 180/180 $9.90 x1
- 16G 2.5" SATA Industrial Wide Temp Solid State Drive, SLC (-40~85C) $1,000.00 x1
32GB Advantech 2.5' SATA SSD Drive (SLC, -40 ~ 85C)
- CABLE/WIRE, M Cable SATA 7P(W/LOCK)/SATA 7P 60CM C=R 180/180 $9.90 x1
- 32G 2.5' SATA Industrial Wide Temp Solid State Drive, SLC (-40~85C) $290.03 x1
64GB Advantech 2.5' SATA SSD Drive (SLC, -40 ~ 85C)
- CABLE/WIRE, M Cable SATA 7P(W/LOCK)/SATA 7P 60CM C=R 180/180 $9.90 x1
- SOLID STATE DISK, SQF 2.5' SATA SSD 64G SLC (-40~85C) $534.60 x1
128GB Advantech 2.5' SATA SSD Drive (SLC, -40 ~ 85C)
- CABLE/WIRE, M Cable SATA 7P(W/LOCK)/SATA 7P 60CM C=R 180/180 $9.90 x1
- SOLID STATE DISK, SQF 2.5' SATA SSD 128G SLC (-40~85C) $914.76 x1

Solid State Disk (CompactFlash Card)

None
4GB SLC Industrial Grade Compact Flash Card with DMA (-40 ~ 85°C)
- 4G Industrial Wide Temp Compact Flash Card, SLC 2-Channel P8 DMA (-40~85) $50.49 x1
8GB SLC Industrial Grade Compact Flash Card with DMA (-40 ~ 85°C)
- 8G Industrial Wide Temp Compact Flash Card, SLC 2-Channel P8 DMA (-40~85) $84.15 x1
16GB SLC Industrial Grade Compact Flash Card with DMA (-40 ~ 85°C)
- 16G Industrial Wide Temp Compact Flash Card, SLC 2-Channel P8 DMA (-40~85) $160.38 x1
32GB SLC Industrial Grade Compact Flash Card with DMA (-40 ~ 85°C)
- SOLID STATE DISK, SQF 32G SLC CF 2CH P8 DMA (-40~85) $282.15 x1

Operating System

None
Microsoft® Windows® CE 6.0 (Minimum space required on HDD: 1GB; Maximum DRAM: 512MB)
- WINDOWS CE 6.0 PRO EMBEDDED(G) $16.83 x1
Microsoft® Windows® Embedded Standard WES 2009 (Minimum Space Required: 4GB)
- WINDOWS EMBEDDED STANDARD 2009(G) $82.17 x1
Windows Embedded Standard 7E (32BIT) - WES7E (Minimum Space Required: 16GB)
- WINDOWS EMBEDDED STANDARD 7E(G) $84.15 x1
- Install 32bit version OS $9.90 x1
Microsoft® Windows® XP Professional SP3 English (Minimum Space Required: 8GB)
- MISSING 96SW-XPPE3-US $0.00

Microsoft® Windows® 7 Professional 32BIT (Minimum Space Required: 20GB)

WIN7 PRO 32/64 ENGLISH W/RECOVERY DVD(G) $163.35 x1

Install 32bit version OS $9.90 x1

Microsoft® Windows® 7 Professional 64BIT (Minimum Space Required: 20GB)

WIN7 PRO 32/64 ENGLISH W/RECOVERY DVD(G) $163.35 x1

Install 64bit version OS $9.90 x1

Power Adapter

Included with the system

Power Cord

Power Cable 3P/3P 1.8M

CABLE/WIRE, Power Cord 3P UL 10A 125V 180cm $9.90 x1

Wireless LAN Connectivity

None

802.11 a/b/g/n WiFi Module for ARK-1122H/C/F

ELECTRIC PART, EMI Antenna 2DBI 2.4GHz SMA CONN for ARK-3384 $9.90 x1

ELECTRIC PART, Cable R/P SMA (M) to MHF 1.32 150mm $9.90 x1

96/97 ASSEMBLY, Half-size miniPCIe to miniPCIe bracket set $9.90 x1

OTHERS, Advantech 802.11bgn RTL8188EE 1T1R, 1-connector $9.90 x1

Industrial Touch Monitors (ARK)

None

15” XGA CCFL Industrial Monitor with Fully Flat Touchscreen

CABLE/WIRE, Power Cord 2P USA 7A 125V 1.8M $9.90 x1

POWER SUPPLY, ADAPTER 100-240V 65W 19V 3.42A W/PFC 9NA0651348 $14.85 x1

15” XGA CCFL Industrial Monitor with Fully Flat Touchscreen $557.75 x1

15” XGA LED Industrial Monitor with Fully Flat Resistive Touchscreen

CABLE/WIRE, Power Cord 3P UL/CSA(USA) 125V 10A 1.83M 180D $9.90 x1

POWER SUPPLY, ADAPTER 100-240V 60W 12V 5A W/O PFC DPS-60PB A A $19.80 x1

15” XGA LED Industrial Monitor with Fully Flat Resistive Touchscreen $712.80 x1

12” XGA LED Industrial Monitor with Fully Flat Resistive Touchscreen

CABLE/WIRE, Power Cord 3P UL/CSA(USA) 125V 10A 1.83M 180D $9.90 x1

POWER SUPPLY, ADAPTER 100-240V 60W 12V 5A W/O PFC DPS-60PB A A $19.80 x1

12” XGA LED Industrial Monitor with Fully Flat Resistive Touchscreen $717.75 x1

17” XGA LED Industrial Monitor with Fully Flat Resistive Touchscreen

CABLE/WIRE, Power Cord 3P UL/CSA(USA) 125V 10A 1.83M 180D $9.90 x1

POWER SUPPLY, ADAPTER 100-240V 60W 12V 5A W/O PFC DPS-60PB A A $19.80 x1

17” XGA LED Industrial Monitor with Fully Flat Resistive Touchscreen $787.05 x1

Assembly and Testing

Standard Assembly, Functional Testing, SW installation (Moderate)

Standard Assembly + Functional Testing + Softwar $48.51 x1

Mounting

None

DIN-rail Mounting Kit for ARK-112X Series

CHASSIS, ARK-11XX series DIN Rail mount kits $16.83 x1

VESA Mounting Kit for ARK-112X Series

CHASSIS, ARK-11XX series VESA mount kits $23.76 x1

Wall Mount Kit for ARK-112X Series

CHASSIS, ARK-11XX series wall mount kits $23.76 x1

Keyboard

None

Keytronic USB 104 Key Keyboard (Black)

KEYTRONIC USB 104 KEY KEYBOARD BLACK(G) $18.81 x1

Keytronic PS/2 104 Key Keyboard (Black)

KEYTRONIC PS/2 104 KEY KEYBOARD BLACK(G) $30.69 x1

Mouse

None

LOGITECH M100 MOUSE OPTICAL USB(G)

LOGITEC M100 MOUSE OPTICAL USB (G) $10.89 x1
