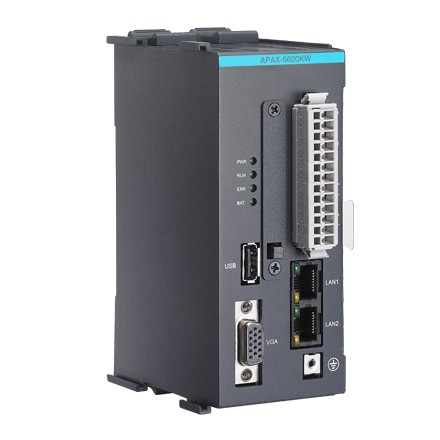

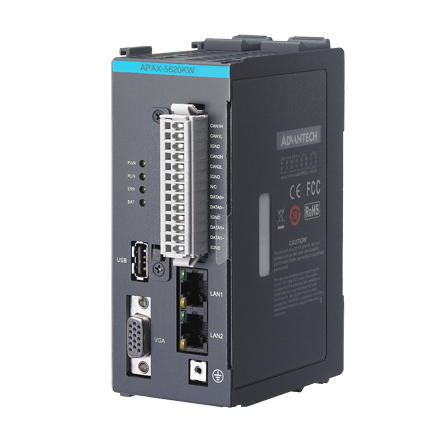

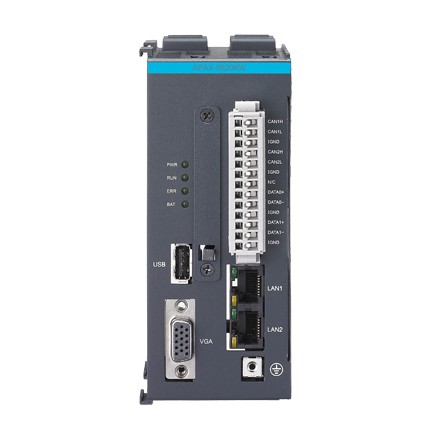

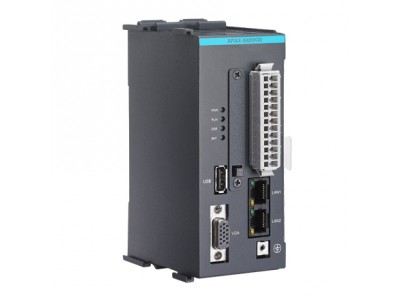

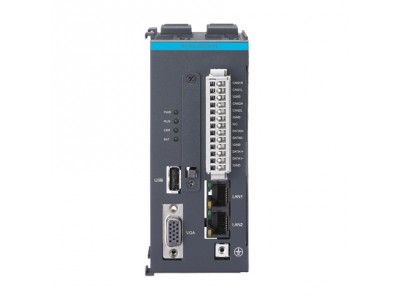

ARM-Based Controller with XScale CPU, KW Multiprog Support (APAX-5620KW-AE)
by Advantech
•Part #: APAX-5620KW-AE
View Detailed Description
$1,125.00
APAX-5620KW is a RISC-based Controller with an Intel XScale PXA270 CP. It also features two CAN bus interfaces, which support CANOpen stack (DS301 & 302), and two RS-485 ports allowing it to connect to remote I/O devices as well as being able to support up to 32 APAX I/O modules. The APAX-5620KW supports Microsoft Visual Studio, and .Net programming language, thereby allowing PC-based users to easily develop their own applications. It is also compatible with IEC-61131-3 based Multiprog KW languages, which allow users to download change functions and time deterministic support. With these great features, the APAX-5620 is an excellent cost-effective solution for a wide range of applications, such as steel production monitoring, spinning & weaving machinery, factory automation, and tunnels & freeways.
- Onboard Intel XScale® PXA270 520 MHz processor
- 64 MB SDRAM on board, 32 MB Flash
- Expands I/O by connecting with APAX-5000 I/O modules
- 2 x 10/100 Mbps RJ-45 LAN ports and 2 x Isolated RS-485 ports
- 2 x Isolated CAN bus interfaces to support CANOpen stack
- 1 x VGA port for display and 1 x USB port
- 1 x CompactFlash slot for data storage
- Windows CE, C/C++, .NET ready platform
| Communications (CAN) | Medium | 2 x Isolated CAN |
| Speed | Maximum 1 Mbps | |
| Communications (Ethernet) | LAN | 2 x RJ-45 Port, 10/100 Mbps |
| Communications (Serial) | Medium | 2 x Isolated RS-485 (2-wire, isolated) |
| Environment | Temperature (Operating) | -10 ~ 55°C (when mounted vertically) |
| Temperature (Storage) | -40 ~ 70°C | |
| Relative Humidity | 5 ~ 95% (non-condensing) | |
| General | Power Consumption | 5 W @ 24 VDC (typical) |
| Certifications | CE, FCC class A | |
| Weight | 310 g | |
| Dimensions (W x H x D) | 60 x 139 x 100 mm | |
| Enclosure | ABS+PC | |
| I/O Expansion | Connected I/O Modules | 32 (max.)* |
| Digital Signals | 768 (max.) | |
| Analog Signals | 192 (max.) | |
| Software | Control Software | C/C++ and .NET library KW Multiprog (development tool), KW ProConOS (runtime kernel) |
| OS Support | Windows CE | |
| System Hardware | CPU | Marvel XScale PXA270 520 MHz |
| Storage | 1 x Type II CompactFlash card slot | |
| USB Ports | 1 x USB 1.1 | |
| Battery Backup Memory | 256 KB file system, 256 KB direct access | |
| Real-time Clock | Yes | |
| VGA | DB15 connector | |
| Memory Flash | 32 MB, SDRAM 64MB | |
| Watchdog Timer | Yes |
