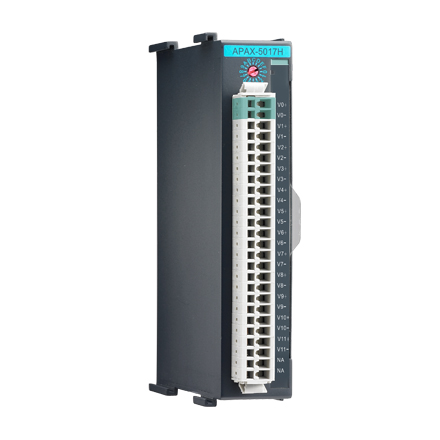

CIRCUIT MODULE, 12-ch High Speed Analog Input Module (APAX-5017H-AE)
by Advantech
•Part #: APAX-5017H-AE
View Detailed Description
$450.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
APAX-5017H is a 12-ch high speed analog input module that provides programmable input ranges on each channel. It offers a high sampling rate with up to 1000 samples a second per channel. This high performance analog input module features high density I/O with a flexible topology and hot-swappable functionality.
- 12 analog input channels (12-bit, 1000 sample/second per channel)
- Supports various input types: 0 ~ 500 mV, �10 V, 0 ~ 10 V, 0 ~ 20 mA, 4 ~20 mA
- Each input channel can be configured with different input types and range
- 2500 VDC optical isolation between channels and backplane bus
- �35 VDC over voltage protection
- Wire burnout detection for 4~20 mA current input
| Analog Input | Sampling Rates | 1,000 sample/second (per channel) |
| Resolution | 12-bit with accurancy ±0.1% or better of Full Scale Range (Voltage), ±0.2% or better of Full Scale Range (Current) | |
| Channels | 12 (Differential) | |
| Input Type | V, mV, mA | |
| Input Impedance | 2 MO (Voltage), 120 O (Current) | |
| Wire Burn-out Det. | Yes (4~20 mA only) | |
| Environment | Temperature (Operating) | -10 ~ 60°C (when mounted vertically) |
| Temperature (Storage) | -40 ~ 70°C | |
| Relative Humidity | 5 ~ 95% (non-condensing) | |
| General | Power Consumption | 3.5 W @ 24 VDC (typical) |
| Certifications | CE, FCC class A | |
| Weight | 175 g | |
| Enclosure Housing | ABS+PC | |
| Dimensions | 30 x 139 x 100 mm |
