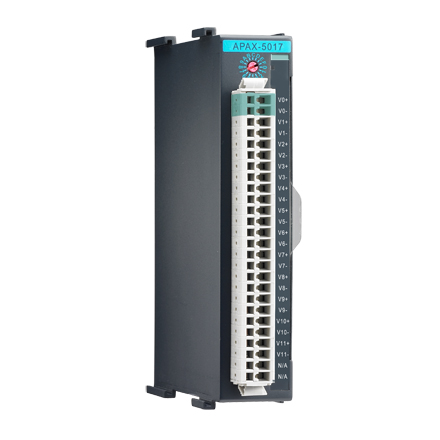

12-ch Analog Input Module (APAX-5017-AE)
by Advantech
•Part #: APAX-5017-AE
View Detailed Description
$350.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
APAX-5017 modules offer analog input channels for voltage and current signal measurement. Users can configure each channel with different input type and measurement range.
- 16-ch voltage and current input
- Range: ±150mV, ±500mV, ±1V, ±5V, ±10V, ±20mA, 0~20mA, 4~20 mA
- 2500 VDC over voltage protection
- Input characteristic curve according to IEC 61131, type 1
- Isolation between channels and backplane
| Analog Input | Sampling Rates | 12 sample/second (total) |
| Resolution | 16-bit with accurancy ±0.1% or better of Full Scale Range (Voltage), ±0.2% or better of Full Scale Range (Current) | |
| Channels | 12 (Differential) | |
| Input Type | V, mV, mA | |
| Input Impedance | > 10 MO (Voltage), 120 O (Current) | |
| Wire Burn-out Det. | Yes (4~20 mA only) | |
| Common Mode | 200 VDC | |
| Environment | Temperature (Operating) | -10 ~ 60°C (when mounted vertically) |
| Temperature (Storage) | -40 ~ 70°C | |
| Relative Humidity | 5 ~ 95% (non-condensing) | |
| General | Power Consumption | 4 W @ 24 VDC (typical) |
| Certifications | CE, FCC class A | |
| Weight | 170 g | |
| Enclosure Housing | ABS+PC | |
| Dimensions | 30 x 139 x 100 mm |
