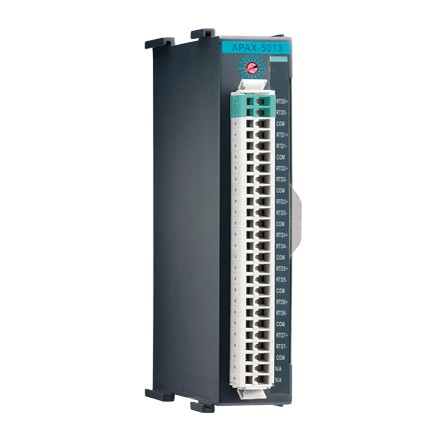

8-Channel RTD Module (APAX-5013-AE)
by Advantech
•Part #: APAX-5013-AE
View Detailed Description
$315.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
APAX-5013 modules offer analog input channels for voltage and current signal measurement. Users can configure each channel with different input type and measurement range.
- Wire Burn-out Detection
- High Density Channel design, total 8 channels
- Supports input Types Pt-100, Pt-200, Pt-500, Pt-1000, Balco, Ni 518 RTD (2-wire and 3-wire)
- Dynamic configuration allows users to configure different channels with different type and range in one module
| Analog Input | Sampling Rates | 10 sample/second (Total) |
| Resolution | 16-bit with accuracy ±0.1% of Full Scale Range | |
| Channels | 8 (differential) | |
| Input Type | Pt-100, Pt-200, Pt-500, Pt-1000, Balco, Ni 518 RTD (3-wire) | |
| Input Impedance | > 10 MO | |
| Wire Burn-out Det. | Yes | |
| Environment | Temperature (Operating) | -10 ~ 60°C (when mounted vertically) |
| Temperature (Storage) | -40 ~ 70°C | |
| Relative Humidity | 5 ~ 95% (non-condensing) | |
| General | Power Consumption | 2.5 W @ 24 VDC (typical) |
| Certifications | CE, FCC class A | |
| Weight | 170 g | |
| Enclosure Housing | ABS+PC | |
| Dimensions | 30 x 139 x 100 mm |
