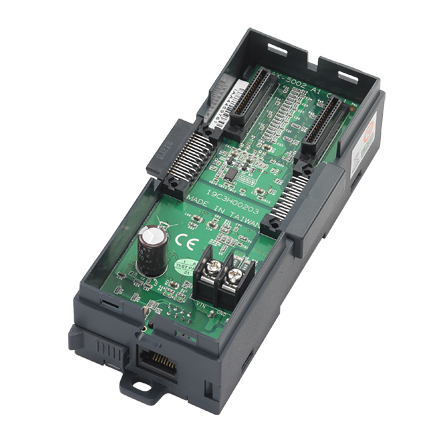

2-slot Backplane Module (APAX-5002-AE)
by Advantech
•Part #: APAX-5002-AE
View Detailed Description
$78.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Similar as APAX-5002, APAX-5001 modules are backplane modules, offering communication and power to APAX-5000 I/O modules inserted on it. APAX-5001 always serves as the last backplane when module number is odd.
- Two slots for two APAX-5000 modules
- With built-in expansion ports, two APAX-5002 backplanes can be connected to form a remote expansion
- Supports both DIN-rail and wall mounting
- Hot swap mechanism for all APAX I/O modules
- 30G shock resistance and 2Grms vibration resistance
| Environment | Temperature (Operating) | 0 ~ 60°C |
| Temperature (Storage) | -25 ~ 75°C | |
| Relative Humidity | 5 ~ 95% (non-condensing) | |
| General | Power Consumption | 1.3 W @ 24 VDC |
| Power Input | 18 ~ 30 VDC | |
| Mounting | DIN-rail, Wall mount (panel mount) | |
| Description | 2-slot Backplane Module | |
| Certifications | CE, FCC class A | |
| Weight | 120 g | |
| Slot Number | 2 | |
| Enclosure Housing | ABS+PC | |
| Dimensions | 54 x 151 x 38 mm |
