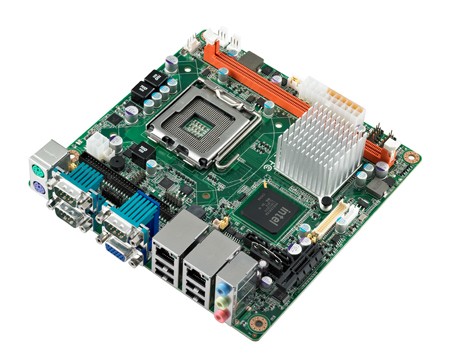

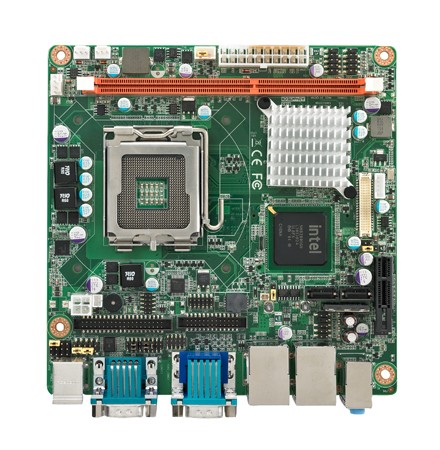

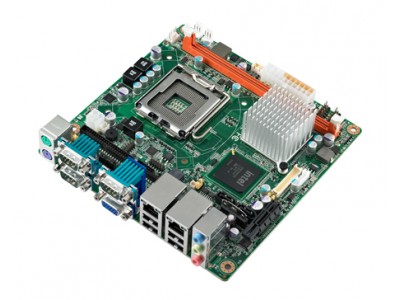

Intel Core 2 Duo/Quad Mini-ITX Motherboard with VGA/LVDS, 8 COM, and Dual LAN (AIMB-267G2-KSA1E)
by Advantech
•Part #: AIMB-267G2-KSA1E
View Detailed Description
$220.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Intel® Core™2 Quad LGA 775 mini-ITX with VGA/LVDS, 8 COM, Dual LAN
- Supports Intel® LGA 775 Core™ 2 Quad/Duo processors up to 3.0GHz with Intel G41+ICH7 chipset
- Single channel DDR3 1066/800 MHz SDRAM up to 4 GB
- Supports VGA and 24/48 bit LVDS display, dual channel 6 W amplifier
- 8 COM ports: 7 x RS-232, 1 x RS-232/422/485 with RS-485 auto flow control
- 8 x USB, 1 x parallel, 8-bit GPIO and PCIe x1 expansion
- Features SATAII and Compact Flash slot
- Dual Gigabit Ethernet
| Expansion | PCI Express x 1 | 1 |
| Graphics | Dual Display | VGA, LVDS |
| I/O | Audio | 3 (Mic-In, Line-In, Line-Out) |
| COM Port | 7 x RS-232, 1 x RS-232/422/485 | |
| Parallel | 1 (EPP/ECP) | |
| I/O Interface | USB | 8 (2.0) |
| Memory | Max. Capacity | 4GB DDR3 |
| Network | LAN | GbE x2 |
| Processor | CPU | Intel Core 2 Quad/Core 2 Duo/Pentium/Celeron |
| Chipset | Intel G41 + ICH7 | |
| SATA | Channel | 2 |
| Max. Transfer Rate | 300 MB/s | |
| Storage | CF | CompactFlash socket for type I/II |
