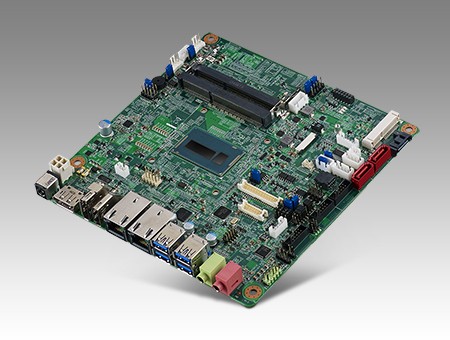

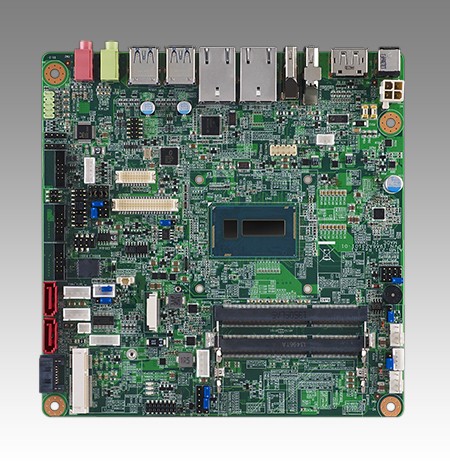

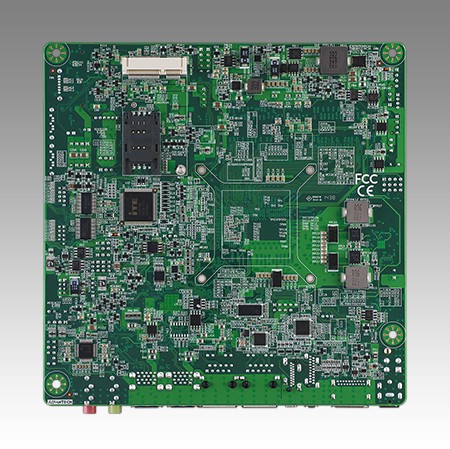

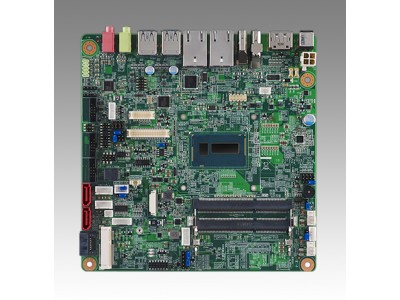

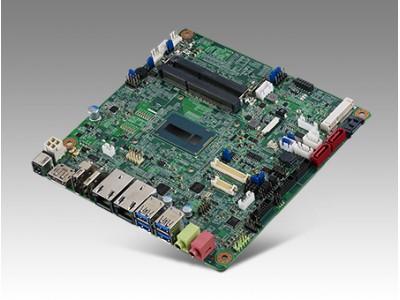

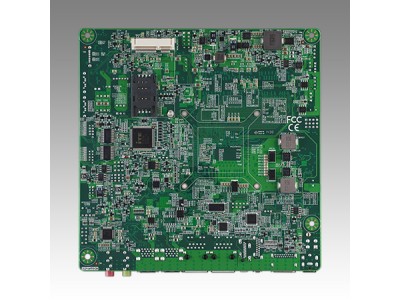

Intel Core i3-5010U Mini-ITX with LVDS(eDP)/DP(HDMI)/DP++, 2 COM, and Dual LAN (AIMB-231G2-U3A1E)
by Advantech
•Part #: AIMB-231G2-U3A1E
View Detailed Description
$488.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Intel® Core™ i5-5350U/ i3-5010U Mini-ITX with LVDS(eDP)/DP(HDMI)/DP , 2 COM, and Dual LAN
- Intel® Core™ i3-5010U processor (Dual core), 15W TDP, BGA 1168 (MCP) 14nm Processor
- Two 204-pin SO-DIMM up to 16 GB DDR3L 1600 MHz SDRAM
- Multiple display I/O supports versatile Tri display functions for eDP/LVDS, DP/HDMI, and DP++
- Realtek ALC892 supports 7.1 + 2 channel HD audio
- Dual Intel i218/i210 Gigabit LAN
- 1 Full-sized Mini-PCIe, 1 Half-sized Mini-PCIe,1 SIM Card Holder
- 2 COM, 3 SATA III, 1 mSATA
- 4 USB 3.0, 2 USB 2.0

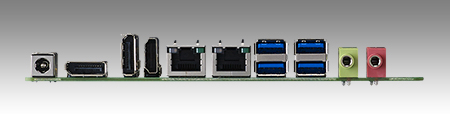

| Audio | Audio Interface | HD Audio |
| CODEC | Realtek ALC892, High Definition Audio (HD) | |
| Connector | 2 (Line out, Mic In) | |
| Certification | EMC | CE/FCC |
| Safety Certifications | CCC/BSMI | |
| Display | Video Interface | HDMI+LVDS (eDP), HDMI+DP++, LVDS (eDP)+DP++ |
| LCD (TTL/LVDS/eDP) | LVDS: Dual channel 24-bit LVDS, up to 1920 x 1080 | |
| Controller | Intel Processor Integrated | |
| Graphic Engine | DirectX 11.1, OpenGL 4.0, OpenCL 1.3, Full AVC, VC1, MPEG2 H/W encoder | |
| Graphic Memory | Share with system memory,2 GB and above | |
| DDI (HDMI/DVI/DisplayPort) | HDMI: Up to 4096 x 2304 @ 24 Hz / 2560 x 1600 @ 60 Hz. DP: Up to 3840 x 2160 @ 60 Hz. | |
| Multiple Display | Dual/ Triple | |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Vibration Resistance | 1 Grm (OP) | |
| Ethernet | Controller | GbE1: Intel i218, GbE2: Intel i210 |
| Speed | 10/ 100/ 1000 Mbps | |
| Connector | RJ45x2 | |
| Expansion | Slots | Full-size Mini-PCIe, Half-size Mini-PCIe |
| Slot Type | 1 x Full-size (Supports mSATA) 1 x Half-size | |
| Form Factor | Form Factor | mini ITX |
| I/O | USB3.0 | 4 |
| USB2.0 | 2 | |
| COM Port | 2 (1xRS-232, 1xRS-232/422/485) | |
| Smart Fan | 2 | |
| Memory | Technology | DDR3L 1333 MHz |
| Max. Capacity | 16GB | |
| Socket | 2x 204 PIN SODIMM | |
| Operating System | Microsoft Windows | Yes |
| Linux | Yes | |
| SUSIAccess | Yes | |
| Physical | Dimension (mm) | 170x170mm |
| Construction | Thermal moudle or CPU cooler | |
| Weight | 1.04 kg (1.72 lb), weight of total package | |
| Power | Power Type | ATX, AT |
| Connector | DC 12V Jack/ 4-pin with ATX12V | |
| Power Adaptor | Yes | |
| Processor | CPU | Onboard CPU |
| CPU TDP | 15 W | |
| BIOS | AMI EFI 128Mbit | |
| Core Number | 2 | |
| Frequency | 2.1 | |
| Chipset | Wildcat Point-LP | |
| L3 Cache | 3 MB | |
| Storage | SATA | 3 x SATA III (Max. Data Transfer Rate 600 MB/s) |
| mSATA | miniPCIe co-lay mSATA | |
| CFast | 0 | |
| Watchdog Timer | WatchDog Timer | Yes |
