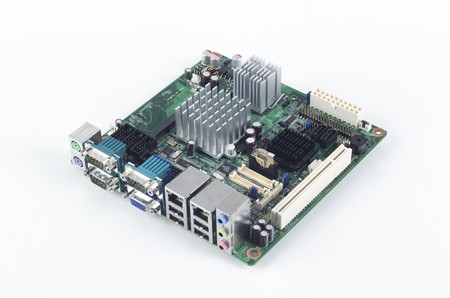

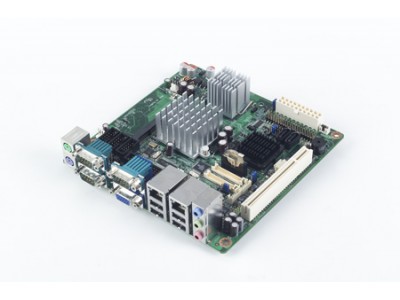

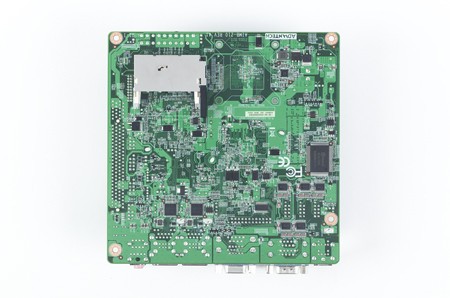

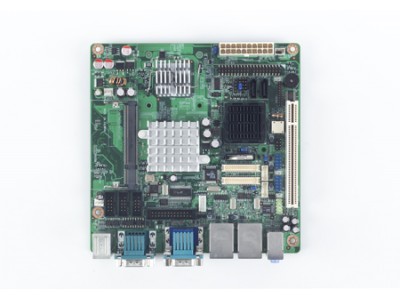

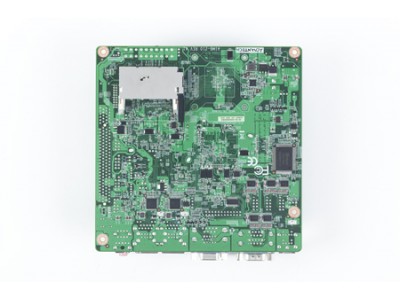

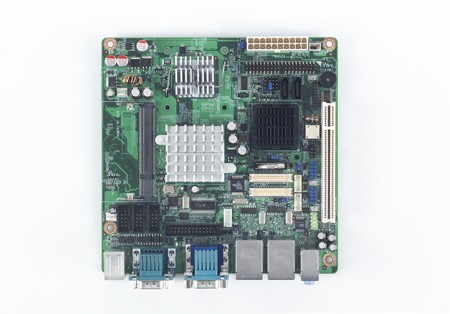

Intel Atom Mini-ITX Motherboard with VGA/LVDS, 6COM, Dual LAN (AIMB-210G2-S6A1E)
by Advantech
•Part #: AIMB-210G2-S6A1E
View Detailed Description
Intel® Atom™ N270 Mini-ITX with CRT/LVDS, 6 COM, and Dual LAN
- Supports Intel Atom N270 1.6GHz processor + 945GSE/ICH7M
- One 200-pin SODIMM up to 2 GB DDR2 533 SDRAM
- Supports dual display for VGA, LVDS, and TV-Out
- Supports dual GbE LAN
- 4 x RS-232, 1 x RS-232/422/485), 8 x USB, and CF
- Supports 1 PCI expansion
- Onboard TPM 1.2 support (optional)
| Display | Type | VGA, LVDS, TV-Out |
| Environment | Temperature (Operating) | 0 ~ 60°C |
| Expansion | Slots | PCI |
| ISA | 0 | |
| Mini PCI | 0 | |
| PCI Express x 1 | 0 | |
| PCI Express x 16 | 0 | |
| PCI Express x 4 | 0 | |
| AGP | 0 | |
| 32-bit PCI | 1 | |

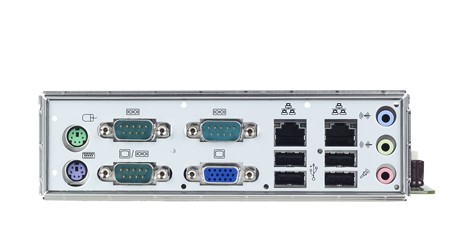

| I/O | COM Port | 6 x RS-232 (COM2:RS-232/422/485) |
| USB | 8 | |
| Memory | Max. Capacity | 2GB DDR2 |
| Network | LAN | 2 GbE |
| Processor | Chipset | Intel® 945GSE/ICH7M |
| Max Speed | 1.6 GHz onboard | |
| CPU | Onboard CPU |
