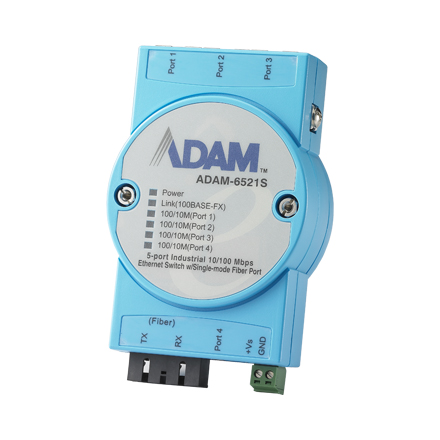

5-port Switch w/1 Single-Mode Fiber-Optic Port (ADAM-6521S-AE)
by Advantech
•Part #: ADAM-6521S-AE
View Detailed Description
$325.00
ADAM-652S1 is an industrial-grade Ethernet switch and single-mode fiber converter. It is designed to help extend an Ethernet network up to 15 km through areas with electrical noise interference. ADAM-6521 has one fiber optic and four RJ-45 ports. With single-mode fiber transmission, you can prevent noise interference and achieve transmission distances up to 15 km. Thus, ADAM-6521S is especially suitable for industrial environments with long-distance Ethernet networking needs, e.g. warehouses, transportation, environmental monitoring, and many more.
- Provides 4 x 10/100 Mbps Ethernet ports with RJ-45 connector
- Provides 1 x 100 Mbps multi/single-mode fiber port with SC connector
- Supports full/half duplex flow control
- Supports MDI/MDI-X auto crossover
- Provides broadcast storm protection
- Embedded with a switch controller, supports auto-negotiation
- Embedded with the memory buffer, supports store-and-forward transmission
- Support 10 ~ 30 VDC voltage
- Provides surge protection 3000 VDC for power line
- Provides flexible mountings: DIN-rail, panel, piggyback
- Supports operating temperature: -10 ~ 65�C
| General | Certifications | CE, FCC, UL/cUL 60950-1 |
| Ethernet Connectors | 4 x RJ-45 + 1 x SC type fiber connector | |
| Mounting | DIN 35 rail, Wall, Stack | |
| I/O | Transmission Distance | Ethernet up to 100 m, Fiber up to 15 km |
| Transmission Speed | UP to 100 Mbps | |
| Interface | Ports Number | 5 |
| Operating System | Temperature (Operating) | -10 ~ 70°C (14 ~ 158°F) I21 Stack: -10~ 60°C (-40 ~ 140°F) |
| Power Supply | Power Input | 1 x Unregulated 10 ~ 30 VDC |
| Power Connector | 2-pin removable screw terminal |
Be the first to review this product!
