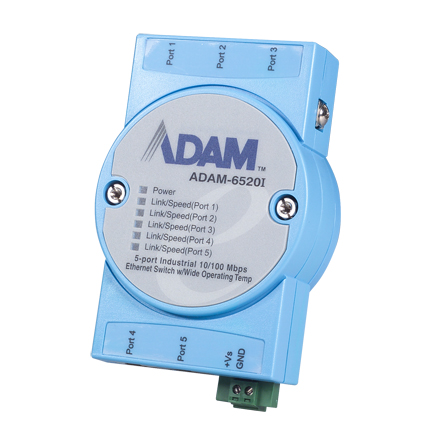

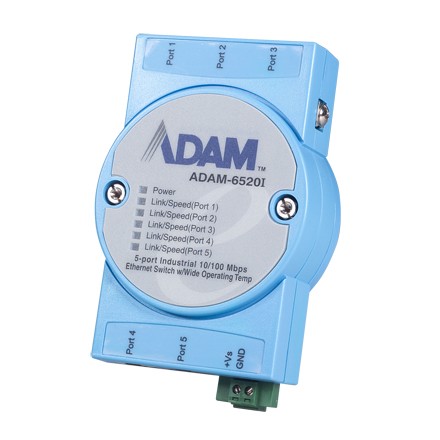

5-port Wide Operating Temp. Industrial Switch (ADAM-6520I-AE)
by Advantech
•Part #: ADAM-6520I-AE
View Detailed Description
$189.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
ADAM-6520I is a 5-port industrial-grade switch with Ethernet connectivity and 10/100 Mbps transmission speed. Just like any other in the ADAM® family, ADAM-6520I can be mounted in three different ways: DIN-rail, wall and stack. ADAM-6520I supports wider operating temperature ranges from -40°C up to 85°C while the ADAM-6520 from -10~70°C.
- Supports full/half duplex flow control
- Supports MDI/MDI-X auto crossover
- Provides broadcast storm protection
- Embedded with a switch controller, supports auto-negotiation
- Supports 10~30 VDC for power input
- Provides surge protection 3,000 VDC for power line
- Supports 4,000 VDC Ethernet ESD protection
- Provides flexible mounting: DIN-rail, Wall, Stack
- Supports wide operating temperature range: -40 ~ 85� C
| General | Certifications | CE, FCC, UL/cUL 60950-1 |
| Ethernet Connectors | 5 x RJ-45 | |
| Mounting | DIN 35 rail, Wall, Stack | |
| I/O | Transmission Distance | Ethernet up to 100 m |
| Transmission Speed | UP to 100 Mbps | |
| Interface | Ports Number | 5 |
| Operating System | Temperature (Operating) | -40 ~ 85°C (-40 ~ 185°F) Stack: -40~ 75°C (-40 ~ 167°F) |
| Power Supply | Power Input | 1 x Unregulated 10 ~ 30 VDC |
| Power Connector | 2-pin removable screw terminal |
