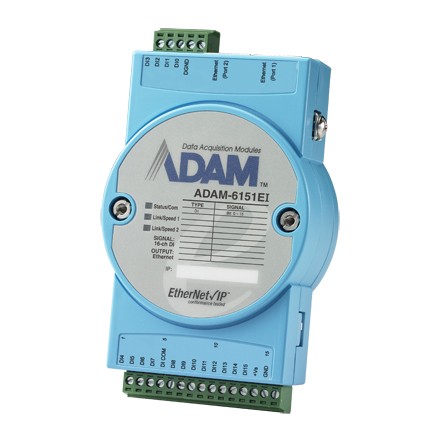

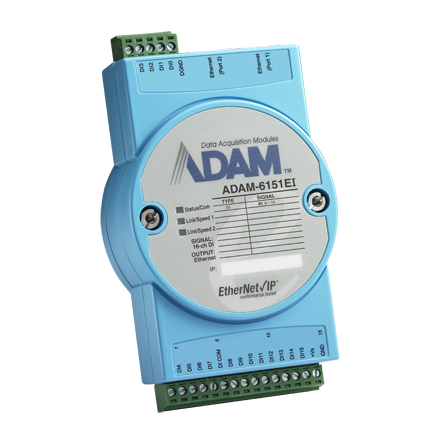

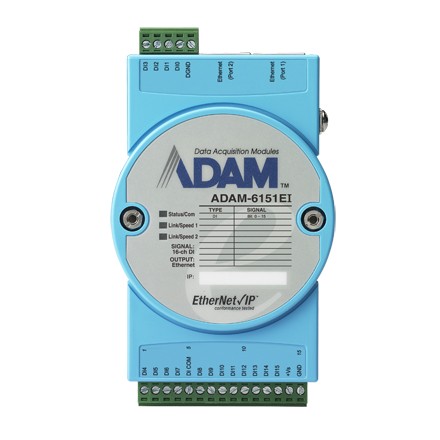

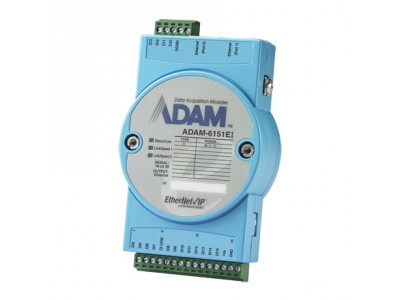

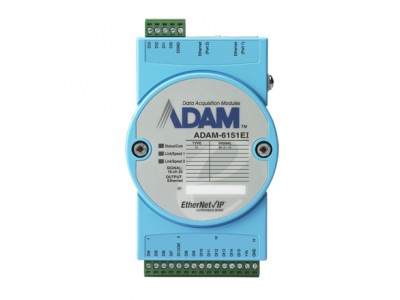

16-Channel Isolated Digital Input EtherNet/IP Module (ADAM-6151EI-AE)
by Advantech
•Part #: ADAM-6151EI-AE
View Detailed Description
$330.00
Advantech’s ADAM-6100 series is a new line of Industrial Ethernet Remote I/O modules. Designed with 2,500 VDC isolation protections, ADAM-6151EI, 16-ch isolated digital input EtherNet/IP module, is very resistant to field interference. It is also equipped with the EtherNet/IP protocol, and allows daisy chain connections, making it possible to transfer data much faster during process control and other industrial automation applications. Daisy chain connectivity provides a more scalable system with fewer wires to help avoid interference common in factory settings. More importantly, Advantech’s ADAM.NET Utility comes bundled with each ADAM-6100 module, allowing users to configure, set, and test ADAM-6100 modules through Ethernet.
- Equipped specifically for the EtherNet/IP protocol
- 16 Channel Isolated Digital Input EtherNet/IP Module
- Normal output current: 0.1 A (per channel)
- 2 x RJ-45 LAN (daisy chain)
- Dry and Wet contact support
| Digital Input | Channles | 16 |
| Input Voltage | Dry contact: Logic level 0: close to GND Logic level 1: open Wet contact: Logic level 0: 0~3 VDC Logic level 1: 10~30 VDC | |
| Display | LED Indicators | Status, Comm, Link, Speed |
| General | Watchdog Timer | System (1.6 second) & Communication (programmable) |
| Connector | 2 x RJ-45 (LAN, Daisy Chain) & 2 x plug-in terminal block (I/O and power) | |
| Temperature (Operating) | -10~70 °C (14~158 °F) | |
| Humidity | 20~95 %RH | |
| Temperature (Storage) | -20~80 °C (-4~176 °F) | |
| Interface | 10/100Base-T(X) | |
| Peer-to-Peer | No | |
| GCL | No | |
| Isolation Protection | 2500 VDC | |
| Communication Protocol | EtherNet/IP | |
| Communication Speed | Ethernet: 10/100Mbps | |
| Comm. Distance | Ethernet: 100 m | |
| Power Supply | Power Requirement | 10~30 VDC |
