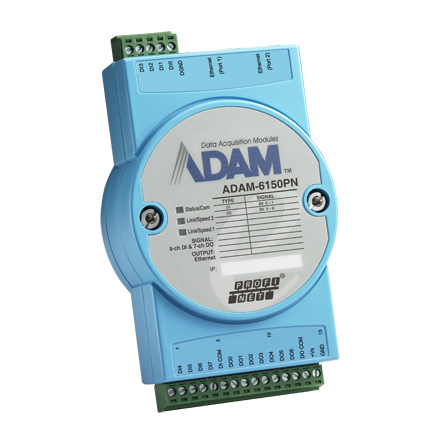

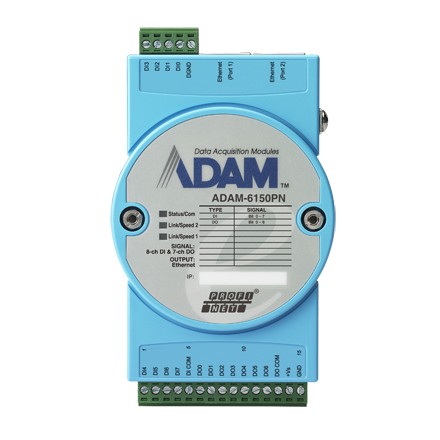

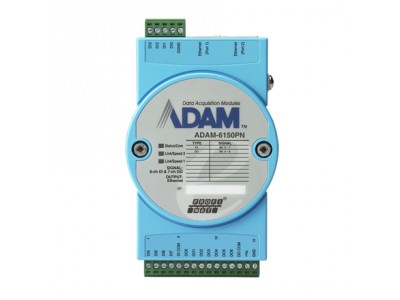

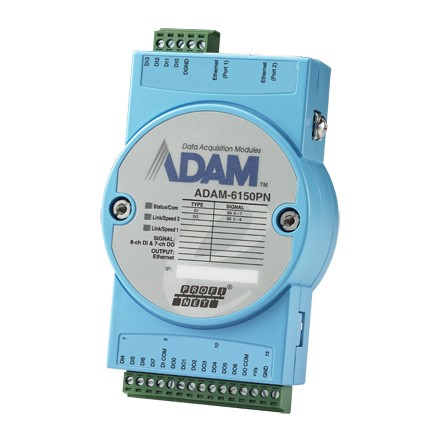

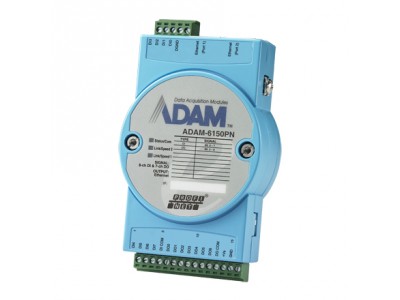

8-Channel Isolated DI/O PFOFINET Module (ADAM-6150PN-AE)
by Advantech
•Part #: ADAM-6150PN-AE
View Detailed Description
$330.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
15-ch Isolated Digital I/O PROFINET Module
- PROFINET protocol
- 8-ch digital input and 7-ch digital output (sink)
- Normal output current: 0.1 A (per channel)
- 2 x RJ-45 LAN (daisy chain)
| Digital Input | Channles | 8 |
| Input Voltage | Dry contact: Logic level 0: close to GND Logic level 1: open Wet contact: Logic level 0: 0~3 VDC Logic level 1: 10~30 VDC | |
| Digital Output | Channels | 7 (Sink type) 8~35V, 100 mA per channel |
| Display | LED Indicators | Status, Comm, Link, Speed |
| General | Watchdog Timer | System (1.6 second) & Communication (programmable) |
| Connector | 2 x RJ-45 (LAN, Daisy Chain) & 2 x plug-in terminal block (I/O and power) | |
| Temperature (Operating) | -10~70 °C (14~158 °F) | |
| Humidity | 20~95 %RH | |
| Temperature (Storage) | -20~80 °C (-4~176 °F) | |
| Interface | 10/100Base-T(X) | |
| Peer-to-Peer | No | |
| GCL | No | |
| Isolation Protection | 2500 VDC | |
| Communication Protocol | PROFINET | |
| Communication Speed | Ethernet: 10/100Mbps | |
| Comm. Distance | Ethernet: 100 m | |
| Power Supply | Power Requirement | 10~30 VDC |
