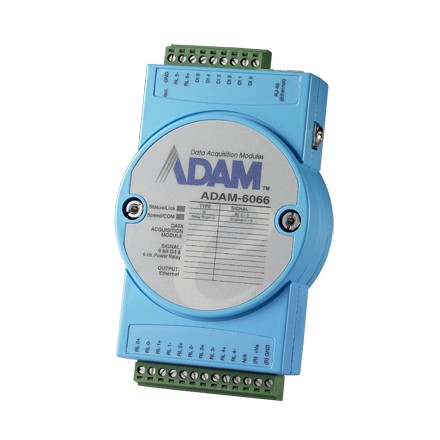

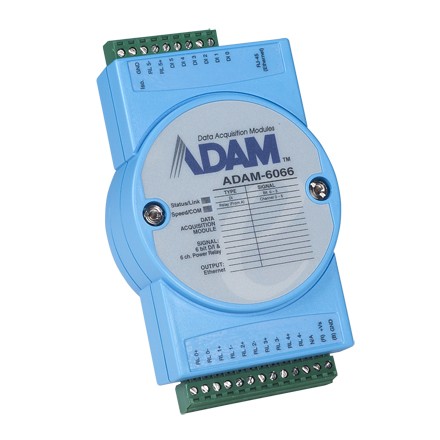

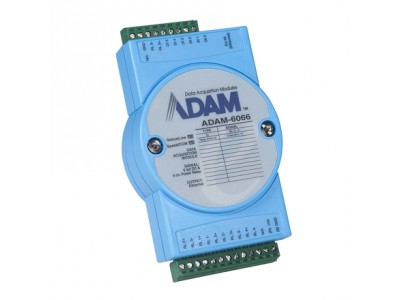

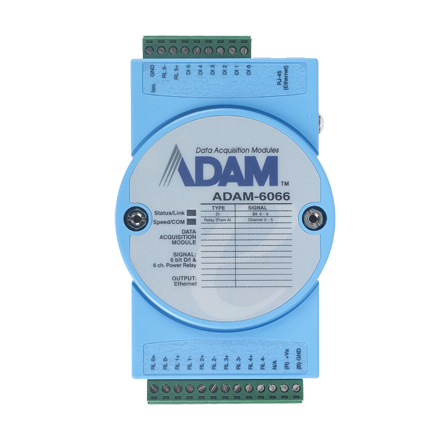

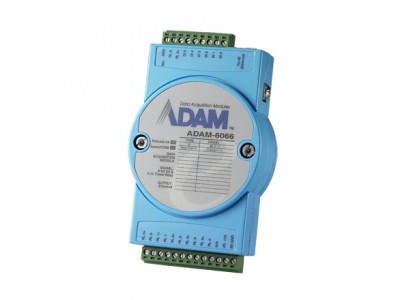

6-Channel Digital Input and 6-Channel Power Relay Modbus TCP Module (ADAM-6066-CE)
by Advantech
•Part #: ADAM-6066-CE
View Detailed Description
$225.00
ADAM-6000 accomplishes the integration of automation and enterprise systems easily through internet technology, so that users can avoid changing the entire architecture of the control system and even remotely monitor the device status more flexibly. ADAM-6000 modules are empowered by peer-to-peer (P2P) and Graphic Condition Logic (GCL), and can perform as standalone products for measurement, control and automation. Instead of having additional controllers or programming, system configurations can be done in an extremely short time with the easy-to-use and intuitive graphic utility.
- High Power Relay Output : 250Vac@5A, 30Vdc@5A
- Supports Pulse Output (up to 100 Hz)
- Built-in Web Server
- Supports MODBUS/TCP & UDP Protocol
| Digital I/O | Frequency Input | DI counters (32-bit + 1-bit overflow, 3kHz max.) |
| Digital Input | Input Voltage | Dry contact: Logic level 0: close to GND Logic level 1: open Wet contact: Logic level 0: 0~3 VDC Logic level 1: 10~30 VDC |
| Channels | 6 | |
| Digital Output | Channels | 6-ch power relay support pulse output |
| Display | LED Indicators | Status, Comm, Link, Speed |
| General | Watchdog Timer | System (1.6 second) & Communication (programmable) |
| Temperature (Operating) | -20 ~ 70°C (-4 ~ 158°F) | |
| Humidity | 20~95 %RH | |
| Temperature (Storage) | -30 ~ 80°C (-22 ~ 176°F) | |
| Interface | 10/100Base-T(X) | |
| Peer-to-Peer | Yes | |
| GCL | Yes | |
| Isolation Protection | 2000 VDC | |
| Communication Protocol | Modbus/TCP, TCP/IP, UDP, and HTTP | |
| Communication Speed | Ethernet: 10/100Mbps | |
| Comm. Distance | Ethernet: 100 m | |
| Connector | 1 x RJ-45 (LAN) & 2 x plug-in terminal block (I/O and power) | |
| Power Supply | Power Requirement | 10~30 VDC |
