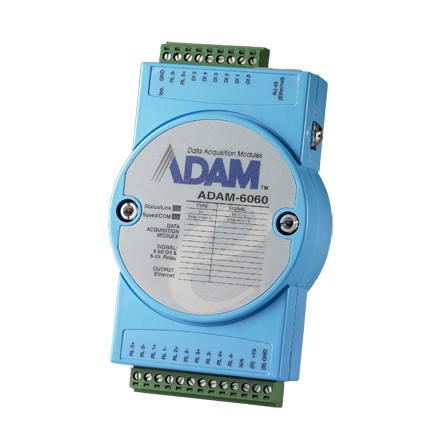

6-Channel Digital Input and 6-Channel Power Relay Modbus TCP Module (ADAM-6060-CE)
by Advantech
•Part #: ADAM-6060-CE
View Detailed Description
$210.00
ADAM-6000 accomplishes the integration of automation and enterprise systems easily through internet technology, so that users can avoid changing the entire architecture of the control system and even remotely monitor the device status more flexibly. ADAM-6000 modules are empowered by peer-to-peer (P2P) and Graphic Condition Logic (GCL), and can perform as standalone products for measurement, control and automation. Instead of having additional controllers or programming, system configurations can be done in an extremely short time with the easy-to-use and intuitive graphic utility.
- Remote monitoring and control with smart phone/pad
- Group configuration capability for multiple module setup
- Flexible user-defined Modbus address
- Intelligent control ability by Peer-to-Peer and GCL function and User Access control
- Multiple protocol support: Modbus TCP, TCP/IP, UDP, HTTP, DHCP
- 10/100 Mbps communication rate
- 2000VRMS optical isolation
- I/O type: 6 Relay (form A) / 6 DI
- Provide default/customized web page
| Digital I/O | Frequency Input | DI counters (32-bit + 1-bit overflow, 3kHz max.) |
| Digital Input | Input Voltage | Dry contact: Logic level 0: close to GND Logic level 1: open Wet contact: Logic level 0: 0~3 VDC Logic level 1: 10~30 VDC |
| Channels | 6 | |
| Digital Output | Channels | 6-ch relay support pulse output |
| Display | LED Indicators | Status, Comm, Link, Speed |
| General | Watchdog Timer | System (1.6 second) & Communication (programmable) |
| Temperature (Operating) | -20 ~ 70°C (-4 ~ 158°F) | |
| Humidity | 20~95 %RH | |
| Temperature (Storage) | -30 ~ 80°C (-22 ~ 176°F) | |
| Interface | 10/100Base-T(X) | |
| Peer-to-Peer | Yes | |
| GCL | Yes | |
| Isolation Protection | 2000 VDC | |
| Communication Protocol | Modbus/TCP, TCP/IP, UDP, and HTTP | |
| Communication Speed | Ethernet: 10/100Mbps | |
| Comm. Distance | Ethernet: 100 m | |
| Connector | 1 x RJ-45 (LAN) & 2 x plug-in terminal block (I/O and power) | |
| Power Supply | Power Requirement | 10~30 VDC |
