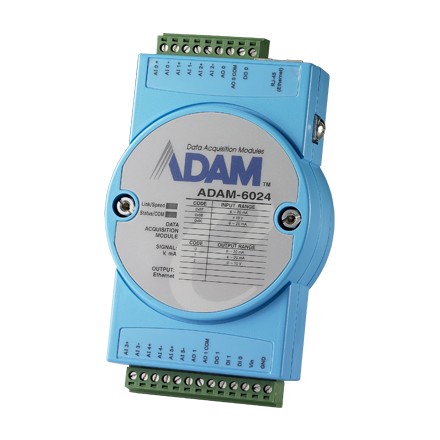

12-Channel Isolated Universal I/O Modbus TCP Module (ADAM-6024-A1E)
by Advantech
•Part #: ADAM-6024-A1E
View Detailed Description
$480.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
The ADAM-6024 is a universal I/O module for various signal applications. There are 6AI / 2AO / 2DI / 2DO included on this module. This module has a universal analog signal type, which makes it an excellent cost-effective I/O solution.
- 6 differential channels
- 16-bit effective resolution
- Isolation Voltage: 2,000 VDC
- Sampling Rate: 10 samples/sec.
| Analog Input | Channel Independent Configuration | Yes |
| Sampling Rates | 10 samples/second | |
| Resolution | 16-bit | |
| Channels | 6 differential | |
| Voltage Range | ±10 V | |
| Current Input | 0~20 mA 4~20 mA | |
| Input Impedance | 20 MOhm | |
| Span Drift | ±25 ppm/°C | |
| Zero Drift | ±6 µV/°C | |
| Analog Output | Channels | 2 |
| Voltage Range | 0~10 V | |
| Current Output | 0~20 mA 4~20 mA | |
| Digital Input | Input Voltage | Dry contact: Logic level 0: close to GND Logic level 1: open Wet contact: Logic level 0: 0~3 VDC Logic level 1: 10~30 VDC |
| Channels | 2 | |
| Digital Output | Channels | 2, open collector to 30V, 100 mA max. load |
| Power Dissipation | 300 mW for each module | |
| Display | LED Indicators | Status, Comm, Link, Speed |
| General | Watchdog Timer | System (1.6 second) & Communication (programmable) |
| Temperature (Operating) | -10~50°C ( 14~122°F ) | |
| Humidity | 20~95 %RH | |
| Temperature (Storage) | -20 ~ 80° C (-4 ~176° F) | |
| Interface | 10/100Base-T(X) | |
| Peer-to-Peer | Receiver Only | |
| GCL | Receiver Only | |
| Isolation Protection | 2000 VDC | |
| Communication Protocol | Modbus/TCP, TCP/IP, UDP, and HTTP | |
| Communication Speed | Ethernet: 10/100Mbps | |
| Comm. Distance | Ethernet: 100 m | |
| Connector | 1 x RJ-45 (LAN) & 2 x plug-in terminal block (I/O and power) | |
| Power Supply | Power Requirement | 10~30 VDC |
