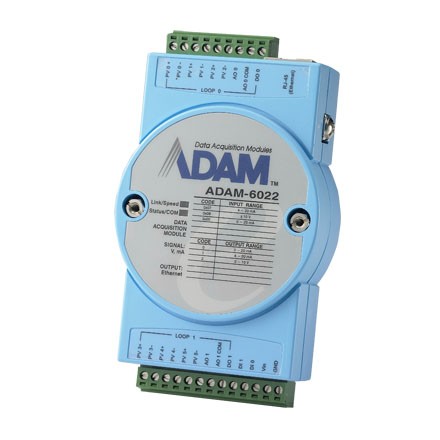

Ethernet-based Dual-loop PID Controller (ADAM-6022-A1E)
by Advantech
•Part #: ADAM-6022-A1E
View Detailed Description
$430.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Advantech’s ADAM-6022 is an Ethernet-enabled dual-loop PID controller for general purposed PID control applications. A user-friendly utility software is included for users to set PID parameters (Pv, Mv, & Sv). Through the integrated web page, users can monitor and change the control set point through the Internet via web browser. The ADAM-6022 also supports MODBUS/TCP protocol. HMI software can easily access this module to monitor the I/O data and change the control parameters.
- 2 loop PID control algorithms built in one package
- 3 analog input/1 analog output/1 digital input/1 digital alarm output for 1 PID loop
- Support multiple analog I/O ranges: 0 ~ 10 VDC, 0 ~ 20 mA and 4 ~ 20 mA
- Support heating/cooling (direct/reverse) action mode
- Support loop open/close (PID disable/enable) and analog output manual control modes
- Built-in watchdog timer
| Analog Input | Channel Independent Configuration | Yes |
| Sampling Rates | 10 samples/second | |
| Resolution | 16-bit | |
| Channels | 6 differential | |
| Voltage Range | ±10 V | |
| Current Input | 0~20 mA 4~20 mA | |
| Input Impedance | 20 MOhm | |
| Span Drift | ±25 ppm/°C | |
| Zero Drift | ±6 µV/°C | |
| Analog Output | Channels | 2 |
| Voltage Range | 0~10 V | |
| Current Output | 0~20 mA 4~20 mA | |
| Digital Input | Input Voltage | Dry contact: Logic level 0: close to GND Logic level 1: open Wet contact: Logic level 0: 0~3 VDC Logic level 1: 10~30 VDC |
| Channels | 2 | |
| Digital Output | Channels | 2, open collector to 30V, 100 mA max. load |
| Power Dissipation | 300 mW for each module | |
| Display | LED Indicators | Status, Comm, Link, Speed |
| General | Watchdog Timer | System (1.6 second) & Communication (programmable) |
| Temperature (Operating) | -10~70 °C (14~158 °F) | |
| Humidity | 20~95 %RH | |
| Temperature (Storage) | -20~80 °C (-4~176 °F) | |
| Interface | 10/100Base-T(X) | |
| Peer-to-Peer | No | |
| GCL | No | |
| Isolation Protection | 2000 VDC | |
| Communication Protocol | Modbus/TCP, TCP/IP, UDP, and HTTP | |
| Communication Speed | Ethernet: 10/100Mbps | |
| Comm. Distance | Ethernet: 100 m | |
| Connector | 1 x RJ-45 (LAN) & 2 x plug-in terminal block (I/O and power) | |
| Power Supply | Power Requirement | 10~30 VDC |
