8-Channel Isolated Thermocouple Input Modbus TCP Module with 8-Channel Digtal Output (ADAM-6018-BE)
by Advantech
•Part #: ADAM-6018-BE
View Detailed Description
$450.00

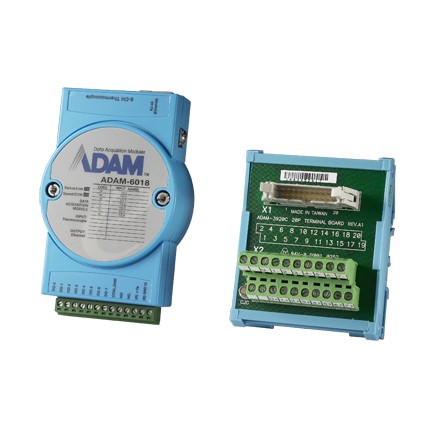

The ADAM-6018 8-channel thermocouple input module is the most prevailing temperature sensor in today’s industrial automation market. In addition to 8 T/C input channels, the ADAM-6018 is also equipped with 8 digital output channels such as auxiliary alarm outputs or pure outputs. Last but not least, the ADAM-6018 comes with an external DIN-rail terminal board for wiring between the ADAM-6018 module and the field sensor. This special wiring mechanism greatly enhances the accuracy and reliability for thermocouple measurement in environmental and facility monitoring applications.
- I/O Type: 8 T/C & 8 DO
- 10/100Based-T Ethernet
- Supports multi-channel/multi-range
- Provides default/customized web page
- 2,500 VDC optical isolation
| Analog Input | Direct Sensor Input | J, K, T, E, R, S, B Thermocouple |
| Burn-out Detection | Yes | |
| Channel Independent Configuration | Yes | |
| Sampling Rates | 10 samples/second | |
| Resolution | 16-bit | |
| Channels | 8 differential | |
| Input Impedance | >10 MOhm | |
| Span Drift | ±25 ppm/°C | |
| Zero Drift | ±6 µV/°C | |
| Digital Output | Channels | 8, open collector to 30V, 100 mA max. load |
| Power Dissipation | 300 mW for each module | |
| Display | LED Indicators | Status, Comm, Link, Speed |
| General | Watchdog Timer | System (1.6 second) & Communication (programmable) |
| Temperature (Operating) | -10~70 °C (14~158 °F) | |
| Humidity | 20~95 %RH | |
| Temperature (Storage) | -20~80 °C (-4~176 °F) | |
| Interface | 10/100Base-T(X) | |
| Peer-to-Peer | Yes | |
| GCL | Yes | |
| Isolation Protection | 2000 VDC | |
| Communication Protocol | Modbus/TCP, TCP/IP, UDP, and HTTP | |
| Communication Speed | Ethernet: 10/100Mbps | |
| Comm. Distance | Ethernet: 100 m | |
| Connector | 1 x RJ-45 (LAN) & 1 x plug-in terminal block (DO and power) & 1 x 20-pin connector to daughterboard (TC) | |
| Power Supply | Power Requirement | 10~30 VDC |
