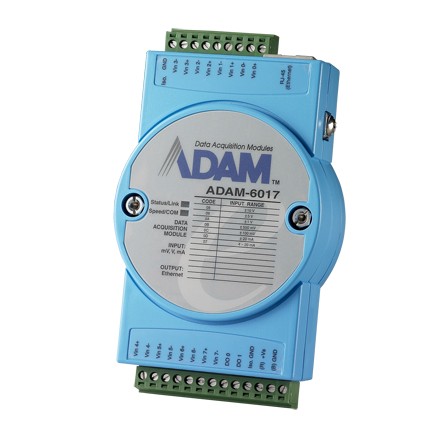

8-Channel Analog Input TCP Module with 2-Channel Digital Output (ADAM-6017-CE)
by Advantech
•Part #: ADAM-6017-CE
View Detailed Description
$315.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
The ADAM-6017 is designed with 8 analog inputs and 2 digital outputs to satisfy all plant needs. Each analog channel is allowed to configure an individual range for variety of applications.
- 10/100 Mbps communication rate
- I/O type: 8 Analog Input / 2 Digital Output
- Remote monitoring and control with mobile devices
- Group configuration capability for multiple module setup
- Input type: mV, V, mA
- Provides default/customized web page
- Provides math. Functions: Max., Min., Avg.
- Web language support: XML, HTML 5, Java Script
| Analog Input | Channel Independent Configuration | Yes |
| Sampling Rates | 10 or 100 sample/second | |
| Resolution | 16-bit | |
| Channels | 8 differential | |
| Voltage Range | ±150 mV ±500 mV ±1 V ±5 V ±10 V, 0~150mV, 0~500 mV, 0~1V, 0~5V, 0~10V | |
| Current Input | 0~20 mA, 4~20 mA, ±20 mA | |
| Input Impedance | Voltage: >10 MOhm Current: 120 Ohm | |
| Span Drift | ±25 ppm/°C | |
| Zero Drift | ± 6 µV/° C | |
| Digital Output | Channels | 2, open collector to 30V, 100 mA max. load |
| Power Dissipation | 300 mW for each module | |
| Display | LED Indicators | Status, Comm, Link, Speed |
| General | Watchdog Timer | System (1.6 second) & Communication (programmable) |
| Temperature (Operating) | -20 ~ 70°C (-4 ~ 158°F) | |
| Humidity | 20~95 %RH | |
| Temperature (Storage) | -30 ~ 80°C (-22 ~ 176°F) | |
| Interface | 10/100Base-T(X) | |
| Peer-to-Peer | Yes | |
| GCL | Yes | |
| Isolation Protection | 2000 VDC | |
| Communication Protocol | Modbus/TCP, TCP/IP, UDP, and HTTP | |
| Communication Speed | Ethernet: 10/100Mbps | |
| Comm. Distance | Ethernet: 100 m | |
| Connector | 1 x RJ-45 (LAN) & 2 x plug-in terminal block (I/O and power) | |
| Power Supply | Power Requirement | 10~30 VDC |
