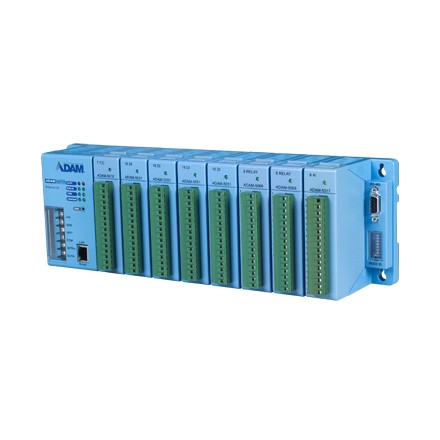

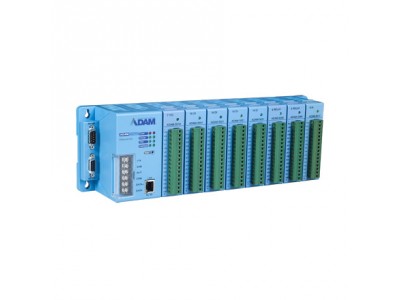

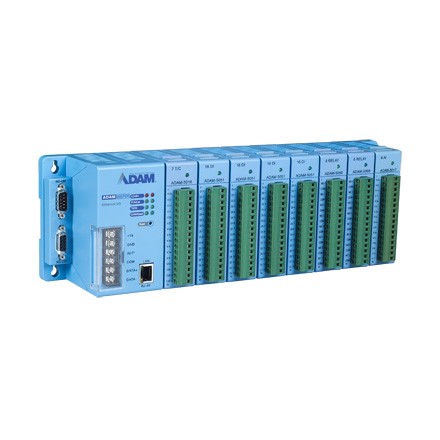

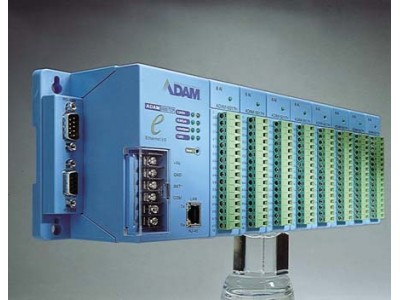

CIRCUIT MODULE, 8-slot Distributed DA&C System Based on Ethernet (ADAM-5000/TCP-CE)
by Advantech
•Part #: ADAM-5000/TCP-CE
View Detailed Description
$435.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
The ADAM-5000L/TCP and ADAM-5000/TPC are both Ethernet-based I/O systems. Without a repeater, the ADAM-5000L/TCP and ADAM-5000/TCP can cover a communication distance up to 100 m. This allows remote configuration via Ethernet and eight PCs can simultaneously access the data. The ADAM-5000L/TCP and ADAM-5000/TCP are the solutions for easy configuration and efficient management. It is an ideal and cost-effective solution for eAutomation architecture.
- ARM 32-bit RISC CPU
- 10/100Base-T auto-negotiation high-speed communication port
- Supports Modbus/TCP for easy integration
- Supports UDP event handling function
- Up to 100 m communication distance w/o repeater
- Allows remote configuration via Ethernet
- Allows concurrent access for 8 host PCs
- 4 I/O slots for up to 64 points and 8 I/O slots for up to 128 points data monitoring and control
| Control System | CPU | Cortex M4 |
| Operating System | real-time OS | |
| Memory | Flash ROM : 1 MB | |
| LED Indicators | Power (3.3 V) RUN Communication (Link, Active, 10/100 Mbps, Tx, Rx) | |
| I/O Slots | 8 | |
| Environment | Operating Temperature | -10 ~ 70°C |
| Storage Temperature | -25 ~ 85°C | |
| Humidity | 5 ~ 95%, non-condensing | |
| General | Mounting | DIN-rail, Wall |
| Certifications | CE, FCC class A | |
| Dimensions (W x H x D) | 355 x 110 x 75 mm | |
| Enclosure | ABS+PC | |
| Connectors | 1 x DB9-M/DB9-F/screw terminal for RS-485 (communication), 1 x DB9-F for RS-232 (internal use), 1 x Screw-terminal for power input, 2 x RJ-45 for LAN | |
| Power | Power Consumption | 5.0 W @ 24 VDC (not including I/O modules) |
| Power Input | Unregulated 10 ~ 30 VDC | |
| Protection | Power Reversal | Yes |
| Communication Line Isolation | 3,000 VDC | |
| I/O Module Isolation | 3,000 VDC |
