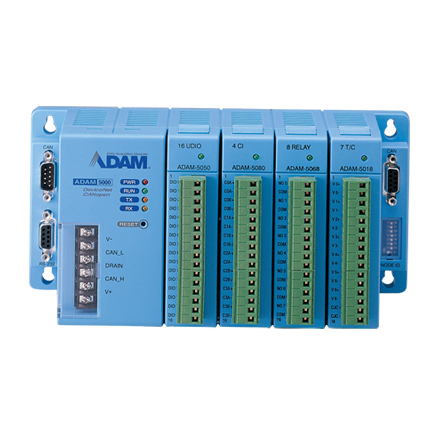

4-slot Distributed DA&C System Based on RS-485 (ADAM-5000/485-AE)
by Advantech
•Part #: ADAM-5000/485-AE
View Detailed Description
$295.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
The ADAM-5000/485 and ADAM-5000E systems conform to the EIA RS-485 communication standard. This is the industry's most widely used, balanced, bidirectional transmission line standard. RS-485 was specifically developed for industrial applications to transmit and receive data at high rates over long distances.
- RS-485 Communication for easy installation and networking
- 4 or 8 slots for up to 128 points data monitoning card control in one module
- Extensive software support; Windows DLL, OCX, OPC server and popular HMI/SCADA software drivers
- Seamlessly integrated with easy-to-use ADAMView data acquisition software
- Supports ADAM ASCII protocol or ModbusR/RTU protocol
- Supports Modbus/RTU protocol with user-defined Modbus address
| Communications | Protocols | ASCII command/response protocol, Modbus/RTU |
| Communication | RS-485: 1.2 km (4000 feet) | |
| Max. Nodes | 128 (in RS-485 daisy-chain network) | |
| Data Format | Asynchronous. 1 start bit, 8 data bits, 1 stop bit, no parity | |
| Network Protocols | Programming link: RS-232 (3-wire: TX, RX, GND), Communication: RS-485 (2-wire) | |
| Reliability Check | Communication error checking with checksum | |
| Speeds (kbps) | 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, and 115.2 | |
| Control System | CPU | 16-bit 80188 microprocessor |
| LED Indicators | Power, CPU, communications | |
| Watchdog Timer | 1.6 sec. (System) | |
| I/O Slots | 4 | |
| Environment | Operating Temperature | -10 ~ 70°C |
| Storage Temperature | -25 ~ 85°C | |
| Humidity | 5 ~ 95%, non-condensing | |
| General | Mounting | DIN-rail, wall, rack (with mounting kit) |
| Certifications | CE, FM | |
| Dimensions (W x H x D) | 231 x 110 x 75 mm | |
| Enclosure | ABS+PC | |
| Connectors | 1 x DB9-M/DB9-F/screw terminal for RS-485 (communication), 1 x DB9-F for RS-232 (configuration), 1 x Screw-terminal for power input | |
| Power | Power Consumption | 3 W @ 24 VDC (not including I/O modules) |
| Power Input | Unregulated 10 ~ 30 VDC | |
| Protection | Power Reversal | Yes |
| Communication Line Isolation | 2,500 VDC | |
| I/O Module Isolation | 3,000 VDC | |
| Transient Protection | RS-485 communication lines, power input |
