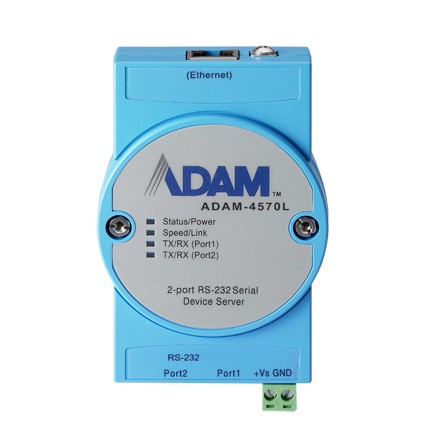

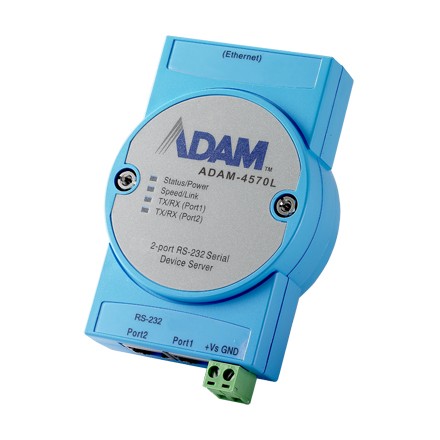

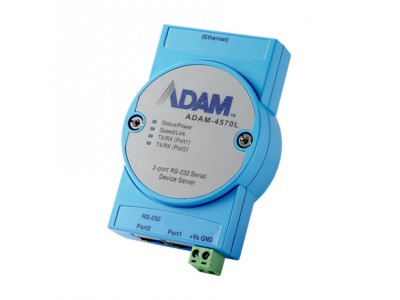

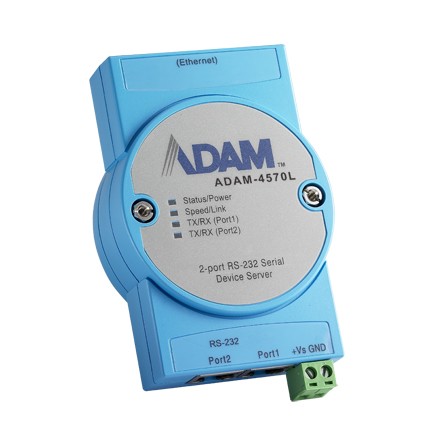

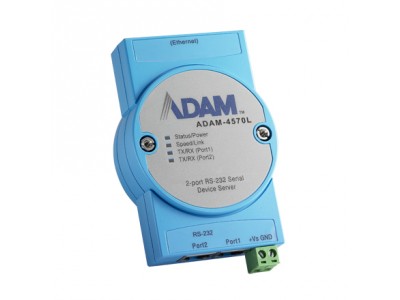

2-port RS-232 Serial Device Server (ADAM-4570L-DE)
by Advantech
•Part #: ADAM-4570L-DE
View Detailed Description
$171.00
ADAM-4571 and ADAM-4571L are fast and cost effective data gateways between serial and Ethernet interfaces. The units also bring the advantages of remote management and dataaccessibility to RS-232/422/485 devices. The transmission speed of the units is up to 230 kbps, meeting the demands for high-speed data exchanges. In addition, you can useWindows utility to configure ADAM-4571 and ADAM-4571L without further programming. The units not only protect your current hardware investment but also ensure future networkexpandability. Since the protocol conversion is transparent, all your existing devices can be seamlessly integrated with an Ethernet network. Therefore, ADAM-4571 and ADAM-4571Lcan be used in security systems, factory automation, SCADA, transportation and more. ADAM-4571 and ADAM4571L link both your existing human-machine interface(HMI) PC andyour RS-232/422/485 devices with Ethernet cables.ADAM-4571 and ADAM-4571L come with a Windows configuration and port-mapping utility. The configuration tool can auto-detect all Ethernet Data Gateway devices on the localnetwork, and let you adjust all settings. The port mapping utility helps you to setup up COM ports for Windows NT/2000/XP platform. This helps you configure all ports to meetyour needs.
- Supports RS-232 serial communication
- Provides 10/100 Mbps auto-sensing Ethernet port
- Supports baud rate up to 921.6 kbps
- Provides COM port redirection (Virtual COM) mode
- Allows a max. of 5 hosts to access one serial port
- Supports auto re-connection function
- Supports Windows 2000/XP/Vista drivers
- Built-in 15 KV ESD protection for all serial signals
| Connector | Serial | RJ48 |
| Ethernet Connectors | RJ45 | |
| Ethernet | Ports | 1 |
| Interface | 10/100 Mbps | |
| Serial Communication | Ports | 2 |
| Type | RS-232 | |
| Software | Baud Rate | 50 ~ 921.6 Kbps |
| Operating Mode | Virtual COM, TCP/UDP server TCP/UDP client Pair connection | |
| Driver | Windows 2000/XP/Vista/7 (32-bit/64bit) |
