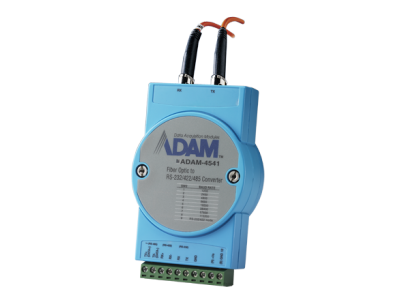

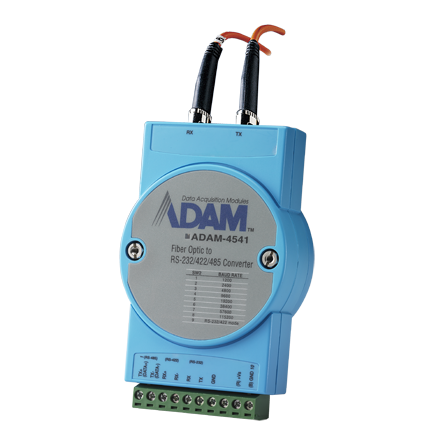

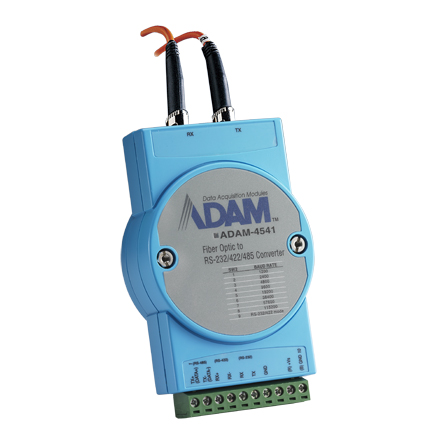

Fiber Optic To RS-232/422/485 Converter (ADAM-4541-BE)
by Advantech
•Part #: ADAM-4541-BE
View Detailed Description
$245.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Fiber optics transmission offers the benefits of wide bandwidth, immunity to EMI/RFI interference, and secure data transmission. ADAM-4541 can be used as an RS-232/422/485 point-to-point or point-to-mutipoint connection for transmitting and converting full/half-duplex signals and their equivalents within a fiber optic environment. Fiber optics is the perfect solution for applications where the transmission medium must be protected from electrical exposure, lightning, atmospheric conditions or chemical corrosion.
- Transmission speeds of up to 115.2 kbps
- Optical fibers enable transmission of 2.5 km (measured with 62.5/125 mm)
- Easily mounted on a DIN-rail, panel or piggyback
- Half/Full-duplex, bidirectional transmission mode
- Avoids lightning strikes and EMI/RFI interference
- Prevents damage from electrostatic discharge
- Transient suppression and over-current protection on RS-422/485 data lines
- LED for power and data flow indication
- Power requirement: +10 to + 30 VDC
| Environment | Operating Temperature | -10 ~ 70°C (14 ~ 158°F) |
| Storage Temperature | -25 ~ 85°C (-13 ~ 185°F) | |
| Operating Humidity | 5 ~ 95% RH | |
| Fiber Optic Communications | Optical Power Budget (Attenuation) | 12.5 dB (measured with 62.5/125 µm) |
| Transmission Distance | 2.5 km | |
| Transmission Mode | Multi mode (Send and Receive) | |
| Wavelength | 820 nm | |
| General | Power Input | Unregulated10-30VDC w/power reversal |
| Interface | Fiber Optic to RS-232/422/485 | |
| Connectors | 1xplug-in terminal block (#14~22 AWG) (RS-232/422/485) 2x ST fiber connector | |
| Serial Communication | Communication Mode | Asynchronous |
| Speed Modes (bps) | 1,200; 2,400; 4,800; 9,600; 19.2k; 38.4k; 57.6k; 115.2k and RS232/422 mode (switchable) | |
| Transmission Mode | Full/half duplex, bidirectional |
