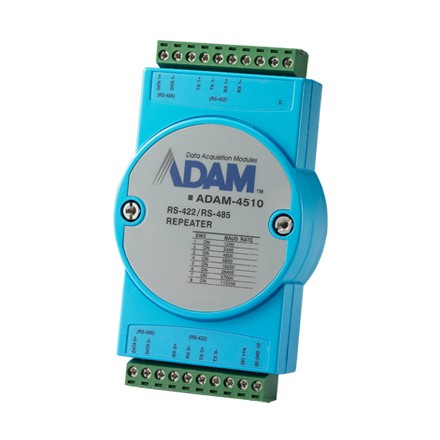

RS-422/485 Repeater Module (ADAM-4510-EE)
by Advantech
•Part #: ADAM-4510-EE
View Detailed Description
$110.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
The ADAM-4510 repeaters simply amplify, or boost, existing RS-485 signals to enable them to cover longer distances. They extend the communication distance by 4000 ft (1200 m) or extend the number of connected nodes by 32.
- Automatic RS-485 data flow control
- 3000 VDC isolation protection
- Surge protection RS-485 data line
- Transmission speed up to 115.2 Kbps
- Networking up to 1200 meters (4000 feet)
- Reserved space for termination resistors
- Power and data flow indicator for troubleshooting
- Power requirement: +10 to +30 VDC
- Mounts easily on a DIN-rail, panel or piggyback
| Display | LED Indicators | Comm |
| General | Temperature (Operating) | -10~70 °C (14~158 °F) |
| Humidity | 5~95 %RH | |
| Temperature (Storage) | -25~85 °C (-13~185 °F) | |
| Interface | RS-422 RS-485 | |
| Isolation Protection | 3,000 VDC | |
| Communication Speed | 1,200, 2,400, 4,800, 9,600, 19.2 k, 38.4 k, 57.6 k, 115.2 k, RTS control and RS-422 (switchable) | |
| Comm. Distance | Serial: 1.2 km | |
| Connector | 2 x plug-in terminal blocks (#14 ~ 22 AWG) (RS-422/485) | |
| Power Supply | Power Requirement | 10~30 VDC |
