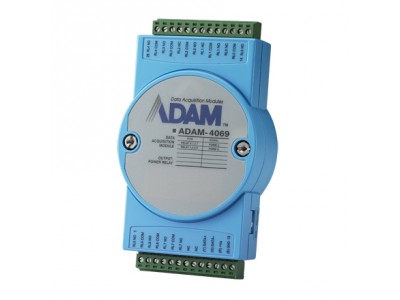

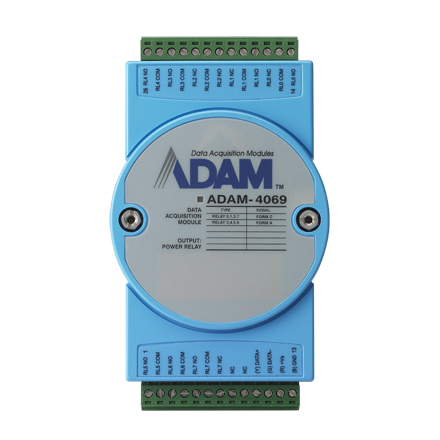

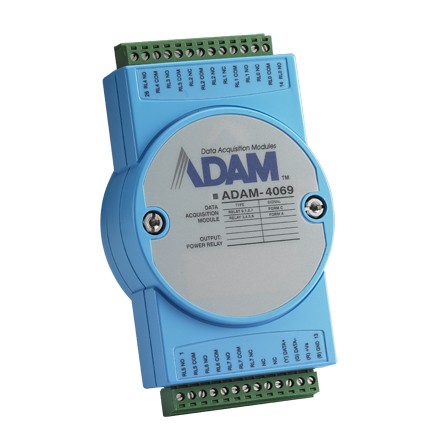

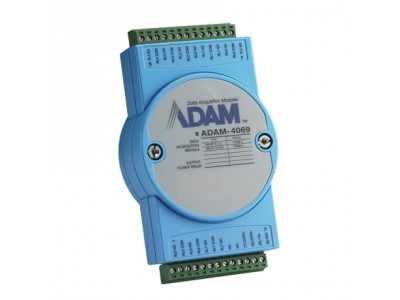

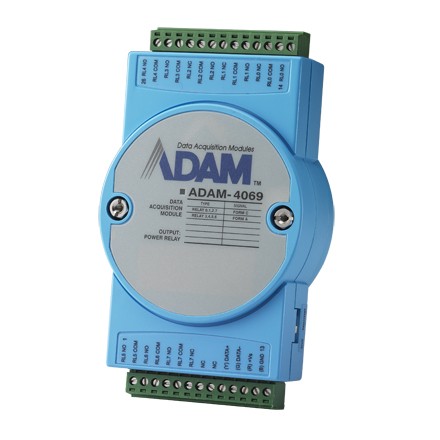

8-Channel Power Relay Output Module with Modbus (ADAM-4069-AE)
by Advantech
•Part #: ADAM-4069-AE
View Detailed Description
$210.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
ADAM-4069 is designed for on/off control in high-voltage applications. The major feature of ADAM-4069 is its power relay rating at 240 V AC and 5 A. This range can satisfy most requirements for driving externally controlled devices such as lights, fans, alarm systems, and various electronic devices in industrial automation, security, building and home automation applications. ADAM-4069 also supports the Modbus/RTU protocol and ADAM ASCII commands. Besides, it provides four form A channels and four form C channels.
- High Power Relay Output : 240Vac@5A, 30Vdc@5A
- 8-channel Relay Output
- 4 form A channels and 4 form C channels
- Supports Modbus/RTU protocol and ADAM ASCII commands
| Digital Output | Channels | 8-ch power relay |
| Display | LED Indicators | Power |
| General | Watchdog Timer | System (1.6 second) & Communication |
| Connector | 2 x plug-in terminal block (#14~28 AWG) | |
| Temperature (Operating) | -10~70 °C (14~158 °F) | |
| Humidity | 5~95 %RH | |
| Temperature (Storage) | -25~85 °C (-13~185 °F) | |
| Interface | RS-485 | |
| Isolation Protection | Breakdown voltage: 1000 VAC (50/60 Hz) | |
| Communication Protocol | ASCII command & Modbus/RTU | |
| Communication Speed | Serial: From 1,200 to 115.2 k | |
| Comm. Distance | Serial: 1.2 km | |
| Data Flow Control | Yes | |
| Power Supply | Power Requirement | 10~30 VDC |
