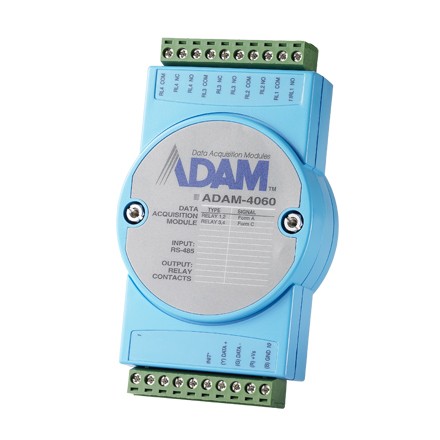

4-Channel Relay Output Module (ADAM-4060-DE)
by Advantech
•Part #: ADAM-4060-DE
View Detailed Description
$135.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
The ADAM Relay Output Module is a low-cost alternative to SSR modules. The ADAM Relay Output Module provides four relay channels, two of Form A and two of Form C. This module is excellent for ON/OFF control or low-power switching applications.
- 4-channels relay, two Form A and two Form C
- Breakdown voltage: 500 VAC (50/60 Hz)
- Insulation resistance: 1000 M ohms minimum at 500 V DC
Digital Output | Channels | 4-ch relay |
Display | LED Indicators | Power |
General | Watchdog Timer | System (1.6 second) |
Connector | 2 x plug-in terminal block (#14~22 AWG) | |
Temperature (Operating) | -10~70 °C (14~158 °F) | |
Humidity | 5~95 %RH | |
Temperature (Storage) | -25~85 °C (-13~185 °F) | |
Interface | RS-485 | |
Isolation Protection | Breakdown voltage: 500 VAC (50/60 Hz) | |
Communication Protocol | ASCII command | |
Communication Speed | Serial: From 1,200 to 115.2 k | |
Comm. Distance | Serial: 1.2 km | |
Data Flow Control | Yes | |
Power Supply | Power Requirement | 10~30 VDC |
Be the first to review this product!
