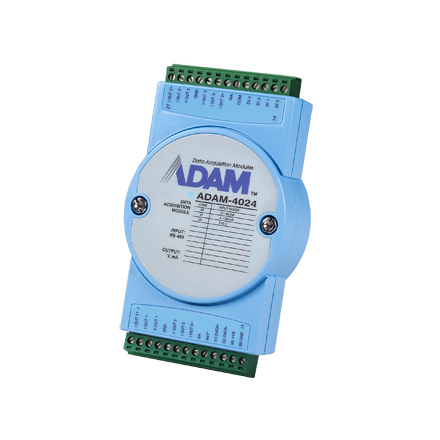

4-Channel Analog Output Module with Modbus (ADAM-4024-B1E)
by Advantech
•Part #: ADAM-4024-B1E
View Detailed Description
$275.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
ADAM-4024 provides 4 universal type output channels. Moreover, it is designed with 4 Digital inputs for integrating applications, such as emergency latch outputs or users default triggers. It uses optical isolators to prevent ground loop effects and limits damages from power surges. You can specify slew rates and startup currents.
- 12-bit resolution
- Software configurable for mA or V output in individual channels
- 4 digital inputs for latch output
- 3000 VDC D/A to Logic isolation
- Programmable output slope: 0.125 - 128.0 mA/sec. 0.0625 - 64 V/sec.
| Analog Output | Channels | 4 |
| Voltage Range | ±10 V | |
| Current Output | 0~20 mA (Differential), 4~20mA (Differential) | |
| Digital Input | Channles | 4 |
| Input Voltage | Logic level 0: 1 VDC max. Logic level 1: 10~30 VDC | |
| Display | LED Indicators | Power |
| General | Watchdog Timer | System (1.6 second) & Communication |
| Connector | 2 x plug-in terminal block (#14~28 AWG) | |
| Temperature (Operating) | -10~70 °C (14~158 °F) | |
| Humidity | 5~95 %RH | |
| Temperature (Storage) | -25~85 °C (-13~185 °F) | |
| Interface | RS-485 | |
| Isolation Protection | 3000 VDC | |
| Communication Protocol | ASCII command & Modbus/RTU | |
| Communication Speed | Serial: From 1,200 to 115.2 k | |
| Comm. Distance | Serial: 1.2 km | |
| Data Flow Control | Yes | |
| Power Supply | Power Requirement | 10~30 VDC |
