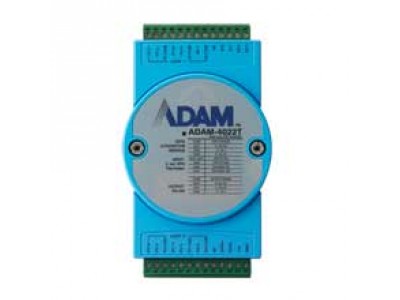

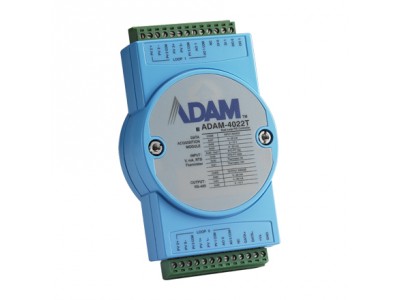

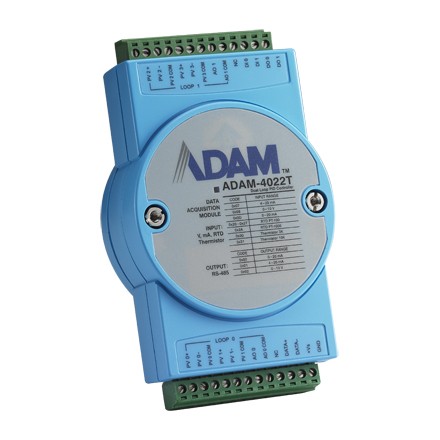

2-Channel Serial Based Dual Loop PID Controller with Modbus (ADAM-4022T-AE)
by Advantech
•Part #: ADAM-4022T-AE
View Detailed Description
$350.00
The ADAM-4022T dual loop PID controller is a Serial-based controller. It was designed as the product of Advantech’s ADAM-4000 series with Serial based PID controller. With an excellent accuracy ±0.15%, the ADAM-4022T is an ideal controller for temperature and other processing variable in heating and cooling applications and environmental tests. ADAM-4022T utility software can help you select input and range configurations, set the operating parameter (SP, Sv, Pv ….. etc) for your process control needed. ADAM-4022T utility software also integrates the trend chart to help you monitor and debug your control setting. ADAM-4022T was designed to use in industrial environment. It can be installed on the standard DIN rail inside the cabinet. And it can be powered by unregulated 10~30Vdc to meet the various power supplied source in field. It also withstands ambient temperature up to 60 o C and resists the effects of vibration and mechanical shock.
- Channels: 4
- Input Type: mA, V, Thermistor, RTD
- Input Range: 0 to 20 mA, 4 to 20 mA, 0 to 10 V
- Watchdog Timer
| Analog Input | Channels | 4 differential |
| Voltage Range | 0~10 V | |
| Current Input | 0~20 mA, 4~20mA | |
| Direct Sensor Input | Thermistor 3k, 10k RTD (Pt100, 1000) | |
| Burn-out Detection | Yes | |
| Channel Independent Configuration | Yes | |
| Sampling Rates | 10 samples/second (total) | |
| Resolution | 16-bit | |
| CMR @ 50/60 Hz | 92 dB | |
| Analog Output | Channels | 2 |
| Voltage Range | 0~10 V | |
| Current Output | 0~20 mA, 4~20mA | |
| Digital Input | Channles | 2 |
| Input Voltage | Logic level 0: close to GND Logic level 1: open | |
| Digital Output | Channels | 2 Open collector to 30V, 30 mA max. load |
| Power Dissipation | 300 mW | |
| Display | LED Indicators | Power |
| General | Watchdog Timer | System (1.6 second) |
| Connector | 2 x plug-in terminal block (#14~28 AWG) | |
| Temperature (Operating) | -10~70 °C (14~158 °F) | |
| Humidity | 5~95 %RH | |
| Temperature (Storage) | -25~85 °C (-13~185 °F) | |
| Interface | RS-485 | |
| Isolation Protection | 3000 VDC | |
| Communication Protocol | ASCII command & Modbus/RTU | |
| Communication Speed | Serial: From 1,200 to 115.2 k | |
| Comm. Distance | Serial: 1.2 km | |
| Data Flow Control | Yes | |
| Power Supply | Power Requirement | 10~30 VDC |
