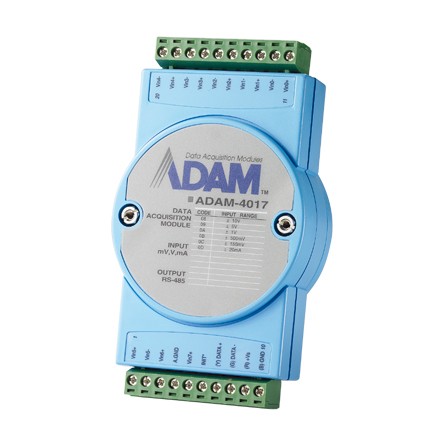

8-Channel Analog Input Module (ADAM-4017-D2E)
by Advantech
•Part #: ADAM-4017-D2E
View Detailed Description
$200.00
The ADAM-4017 is a 16-bit, 8-channel analog input module that provides programmable input ranges on all channels. This module is an extremely cost-effective solution for industrial measurement and monitoring applications. Its opto-isolated inputs provide 3000 VDC of isolation between the analog input and the module, protecting the module and peripherals from damage due to high input-line voltages. ADAM-4017 offers signal conditioning, A/D conversion, ranging and RS-485 digital communication functions. The module protects your equipment from ground loops and power surges by providing optoisolation of A/D input and transformer based isolation up to 3000 VDC. The ADAM-4017 uses a 16-bit microprocessor-controlled sigma-delta A/D converter to convert sensor voltage or current into digital data. The digital data is then translated into engineering units. When prompted by the host computer, the module sends the data to the host through a standard RS-485 interface.
- Channels: Six differential, two single-ended
- Input type: mV, V, mA
- Sampling rate: 10 samples/sec. (total)
| Analog Input | Channels | 8 differential |
| Voltage Range | ±150 mV ±500 mV ±1 V ±5 V ±10 V | |
| Current Input | ±20 mA | |
| Sampling Rates | 10 samples/second | |
| Resolution | 16-bit | |
| Input Impedance | Voltage: 20 MOhm | |
| Span Drift | ±25 ppm/°C | |
| Zero Drift | ±6 µV/°C | |
| CMR @ 50/60 Hz | 92 dB | |
| Display | LED Indicators | Power |
| General | Watchdog Timer | Yes |
| Connector | 2 x plug-in terminal block (#14~22 AWG) | |
| Temperature (Operating) | -10~70 °C (14~158 °F) | |
| Humidity | 5~95 %RH | |
| Temperature (Storage) | -25~85 °C (-13~185 °F) | |
| Interface | RS-485 | |
| Isolation Protection | 3000 VDC | |
| Communication Protocol | ASCII command | |
| Communication Speed | Serial: From 1,200 to 115.2 k | |
| Comm. Distance | Serial: 1.2 km | |
| Data Flow Control | Yes | |
| Power Supply | Power Requirement | 10~30 VDC |
