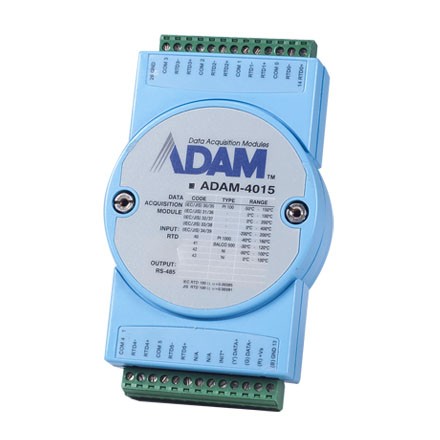

6-ch RTD Module with Modbus (ADAM-4015-CE)
by Advantech
•Part #: ADAM-4015-CE
View Detailed Description
$345.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
A RTD module is popular for temperature measurement. Unlike tranditional designs, the ADAM-4015 provides six RTD input channels for different types of RTD signal as an cost-effective solution in industrial & building automation. Occasionally, broken external wiring will lead to inaccurate current value. The ADAM-4015 provides a broken wiring detection function so users can easily troubleshoot broken wiring problems.
- 6-channel 2 or 3 wires RTD Input
- Accept Pt100/1000, Balco500, Ni input signals
- Channels configurable for different types of input individually
- Wiring burned-out detectable function
- 3000 VDC A/D to logic isolation
| Analog Input | Channels | 6 (2 or 3-wired) |
| Direct Sensor Input | RTD (Pt, Balco, or Ni) | |
| Burn-out Detection | Yes | |
| Sampling Rates | 10 samples/second | |
| Resolution | 16-bit | |
| Input Impedance | 10 MOhm | |
| Span Drift | ±25 ppm/°C | |
| Zero Drift | ±3 µV/°C | |
| CMR @ 50/60 Hz | 120 dB | |
| NMR @ 50/60 Hz | 100 dB | |
| Display | LED Indicators | Power |
| General | Watchdog Timer | System (1.6 second) & Communication |
| Connector | 2 x plug-in terminal block (#14~28 AWG) | |
| Temperature (Operating) | -10~70 °C (14~158 °F) | |
| Humidity | 5~95 %RH | |
| Temperature (Storage) | -25~85 °C (-13~185 °F) | |
| Interface | RS-485 | |
| Isolation Protection | 3000 VDC | |
| Communication Protocol | ASCII command & Modbus/RTU | |
| Communication Speed | Serial: From 1,200 to 115.2 k | |
| Comm. Distance | Serial: 1.2 km | |
| Data Flow Control | Yes | |
| Power Supply | Power Requirement | 10~30 VDC |
