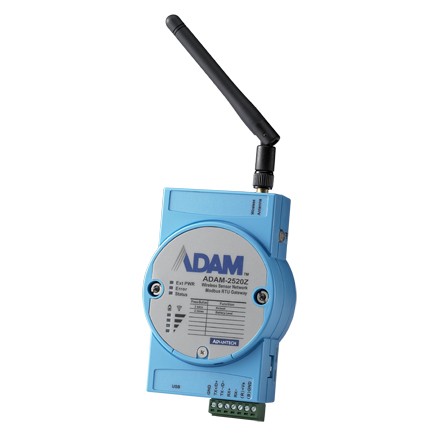

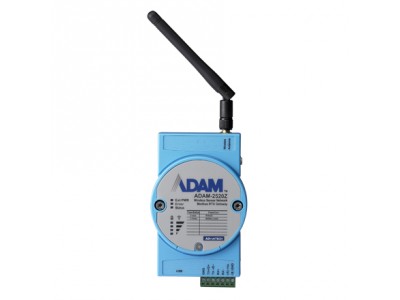

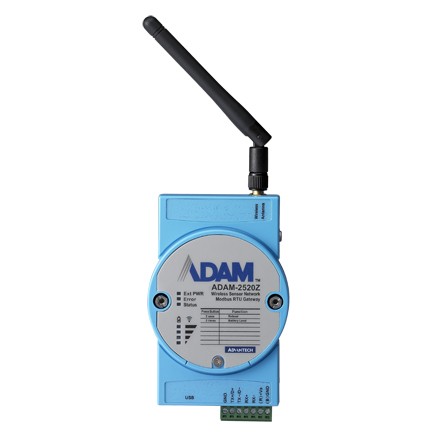

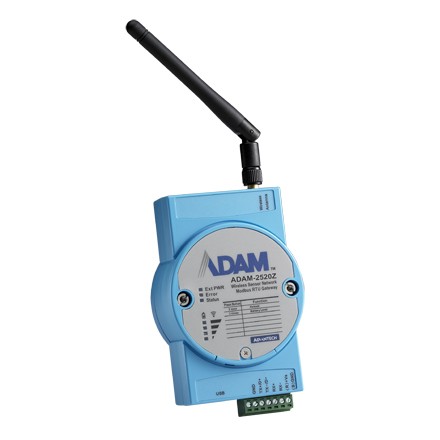

Wireless Modbus RTU Gateway (ADAM-2520Z-AE)
by Advantech
•Part #: ADAM-2520Z-AE
View Detailed Description
$303.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Wireless Modbus RTU Gateway
- 2.4 GHz IEEE 802.15.4 compliant RF
- Provides RS-422/485 and USB interfaces
- Multiple power input design
- Outdoor range up to 1000 m
- Supports battery input with 2 x AA Alkaline batteries
| Display | LED Indicators | Ext PWR, Error, Status, Level Index |
| General | Connector | 1 x plug-in terminal block (#14~22 AWG) 1 x USB type-A |
| Temperature (Operating) | External power: -20~70 °C (-4~158 °F) Battery power: 0~50 °C (32~122 °F) | |
| Humidity | 20~95 %RH | |
| Temperature (Storage) | -40~85 °C (-40~184 °F) | |
| Interface | RS-485 RS-422 USB | |
| Communication Protocol | Modbus/RTU | |
| Communication Speed | Serial: From 1,200 to 115.2 k | |
| Comm. Distance | Serial: 1.2 km | |
| Data Flow Control | Yes | |
| Power Supply | Power Requirement | Power Input: Unregulated 10~30 VDC Battery Input: 2 x AA Alkaline 3 VDC |
| Wireless Network | IEEE Standard | 802.15.4 |
| Frequency Band | ISM 2.4 GHz (2.4 GHz ~ 2.4835 GHz) | |
| Channels | 11 - 26 | |
| Topology | Star / Tree / Mesh | |
| Transmit Power | 19±1 dBm | |
| Outdoor Range | 1000 m (with 2 dBi Antenna) | |
| Modulation Type | DSSS (OQPSK) | |
| Receiver Sensitivity | -97 dBm | |
| RF Data Rate | 250 kbps | |
| Function | Coordinator |
