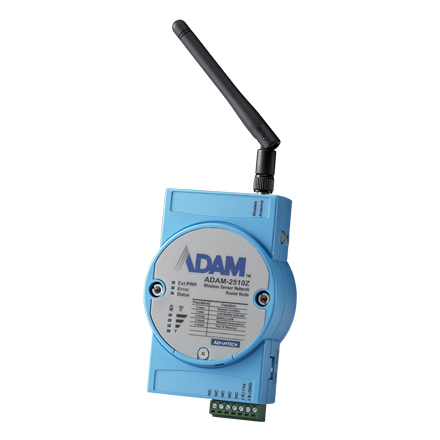

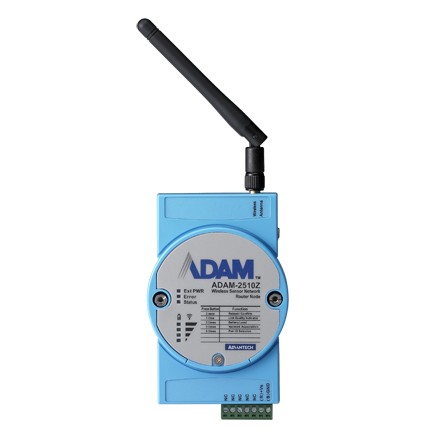

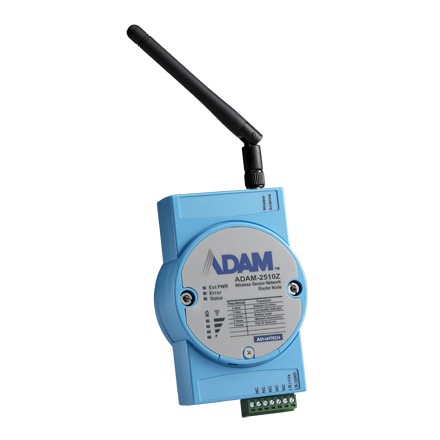

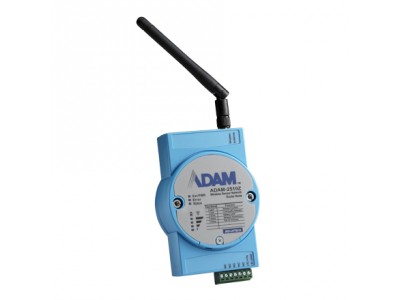

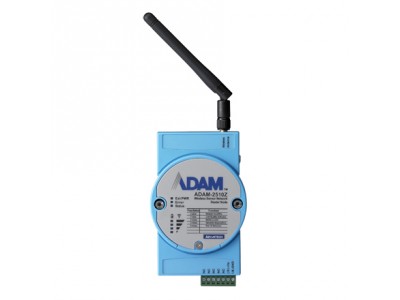

Wireless Router Node (ADAM-2510Z-AE)
by Advantech
•Part #: ADAM-2510Z-AE
View Detailed Description
$299.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Wireless Router Node
- Easy maintenance and field installation
- Low duty wireless communication
- Smart and simple indicator design
- Extends network range and coverage
- Outdoor range up to 1000 m
- Supports battery input with 2 x AA Alkaline batteries
| Display | LED Indicators | Ext PWR, Error, Status, Level Index |
| General | Connector | 1 x plug-in terminal block (#14~22 AWG) |
| Temperature (Operating) | External power: -20~70 °C (-4~158 °F) Battery power: 0~50 °C (32~122 °F) | |
| Humidity | 20~95 %RH | |
| Temperature (Storage) | -40~85 °C (-40~184 °F) | |
| Power Supply | Power Requirement | Power Input: Unregulated 10~30 VDC Battery Input: 2 x AA Alkaline 3 VDC |
| Wireless Network | IEEE Standard | 802.15.4 |
| Frequency Band | ISM 2.4 GHz (2.4 GHz ~ 2.4835 GHz) | |
| Channels | 11 - 26 | |
| Topology | Star / Tree / Mesh | |
| Transmit Power | 19±1 dBm | |
| Outdoor Range | 1000 m (with 2 dBi Antenna) | |
| Modulation Type | DSSS (OQPSK) | |
| Receiver Sensitivity | -97 dBm | |
| RF Data Rate | 250 kbps | |
| Function | Router |
