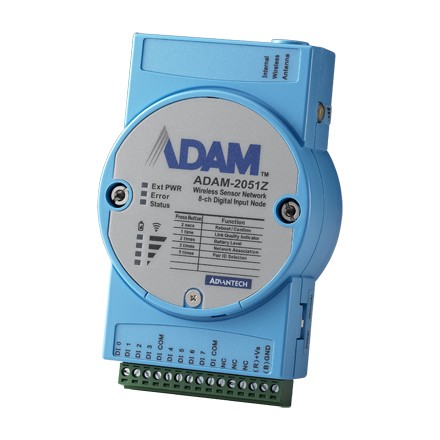

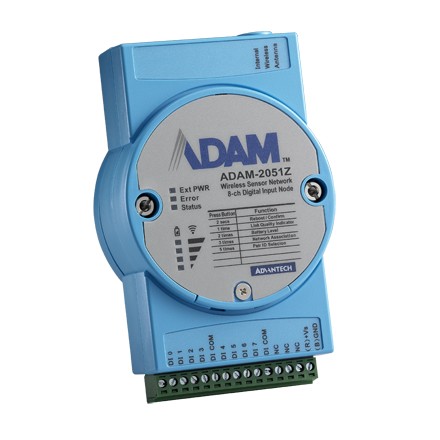

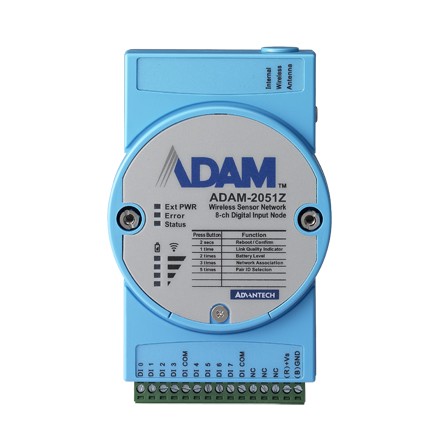

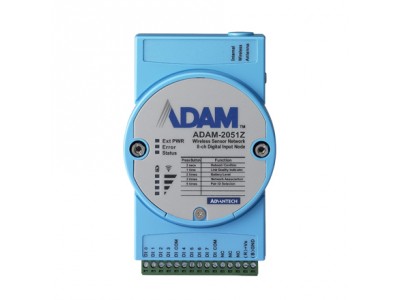

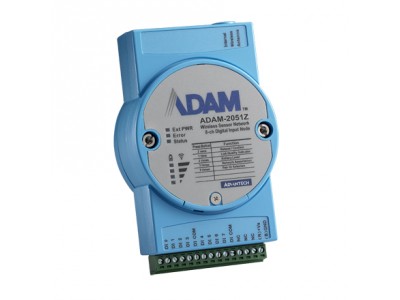

Wireless 8-ch Digital Input Node (ADAM-2051Z-AE)
by Advantech
•Part #: ADAM-2051Z-AE
View Detailed Description
$247.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Wireless 8-ch Digital Input Node
- 2.4 GHz IEEE 802.15.4 compliant RF
- Low duty cycle and low power consumption
- Outdoor range up to 110 m
- Supports battery input with 2 x AA alkaline batteries
- 10K Ω input resistance
| Digital Input | Channles | 8 |
| Input Voltage | Dry contact: Logic level 0: close to GND Logic level 1: open Wet contact: Logic level 0: 0~0.8 VDC max. Logic level 1: 2~5 VDC | |
| Display | LED Indicators | Ext PWR, Error, Status, Level Index |
| General | Connector | 1 x plug-in terminal block (#14~22 AWG) |
| Temperature (Operating) | External power: -20~70 °C (-4~158 °F) Battery power: 0~50 °C (32~122 °F) | |
| Humidity | 20~95 %RH | |
| Temperature (Storage) | -40~85 °C (-40~184 °F) | |
| Power Supply | Power Requirement | Power Input: Unregulated 10~30 VDC Battery Input: 2 x AA Alkaline 3 VDC |
| Wireless Network | IEEE Standard | 802.15.4 |
| Frequency Band | ISM 2.4 GHz (2.4 GHz ~ 2.4835 GHz) | |
| Channels | 11 - 26 | |
| Topology | Star / Tree / Mesh | |
| Transmit Power | 3±1 dBm | |
| Outdoor Range | 110 m | |
| Modulation Type | DSSS (OQPSK) | |
| Receiver Sensitivity | -97 dBm | |
| RF Data Rate | 250 kbps | |
| Function | End Device |
