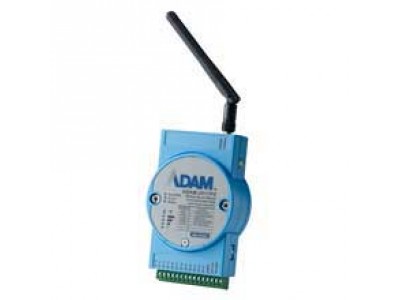

Wireless 6-Channel Analog Input Node with with Power Amplifier (ADAM-2017PZ-AE)
by Advantech
•Part #: ADAM-2017PZ-AE
View Detailed Description
$400.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
The ADAM-2017PZ is a wireless module with 6 analog input channels to measure the voltage�and current. Its low power design allows it to be powered by 2 AA Alkaline batteries, making it�an ideal module for remote data acquisition in a wide area.
- IEEE 802.15.4 Wireless Standard
- Supports Star/Tree/Mesh Network Topologies
- Modbus Communication Protocol
- LED Indicators
- Input Impedance >10 M (Voltage), 120 (Current)
| Analog Input | Accuracy | Voltage: +/-0.1% or better (Current) at 25°C, Current: +/-0.2% or better (Current) at 25°C |
| Channels | 6 Non-Isolation (Differential) | |
| CMR @ 50/60 Hz | 100 dB | |
| Common Mode Volts | 10 VDC | |
| Input Impedance | >10 MΩ (Voltage), 120Ω (Current) | |
| Input Max Voltage | +/-15V | |
| Input Type | mV, V, mA | |
| lnput Range | ±150mV, ±500mV, ±1V, ±5V, ±10V, ±20mA, 0~20mA, 4~20 mA | |
| NMR @ 50/60 Hz | 65 dB | |
| Protection | 16-bit | |
| Sampling Rates | 12 sample/second (total) | |
| Span Drift | ±25 ppm/°C | |
| Zero Drift | ±6 µV/°C | |
| Wireless Network | Frequency Band | ISM 2.4 GHz (2.4 GHz ~ 2.4835 GHz) |
| Function | End Device | |
| IEEE Standard | 802.15.4 | |
| Outdoor Range | 1000 m | |
| Transmit Power | 15 ± 1 dBm |
