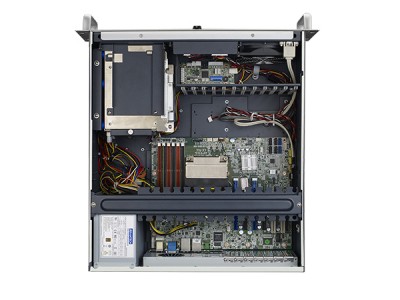

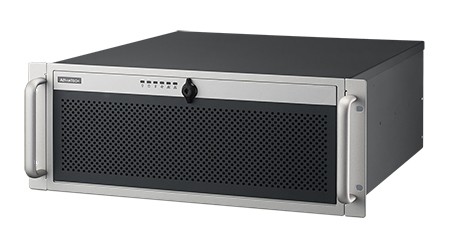

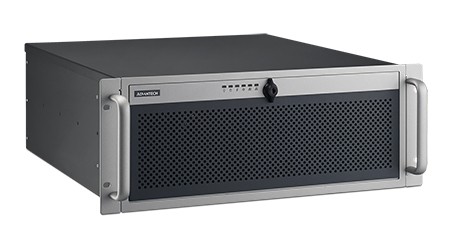

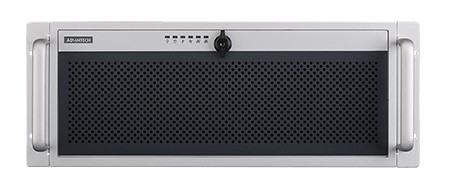

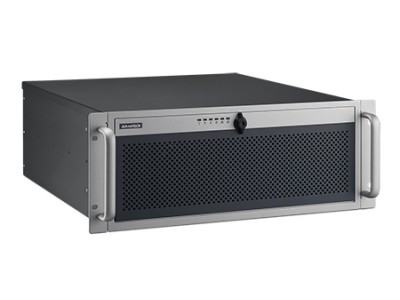

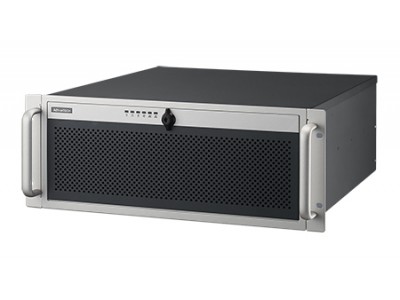

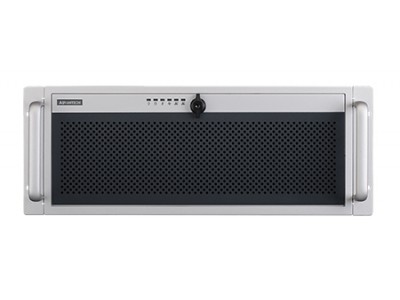

4U Industrial Rackmount Chassis for PICMG with 4 SAS/SATA HDD Trays- Backplane version (ACP-4340BP-00XE)
by Advantech
•Part #: ACP-4340BP-00XE
View Detailed Description
$289.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.

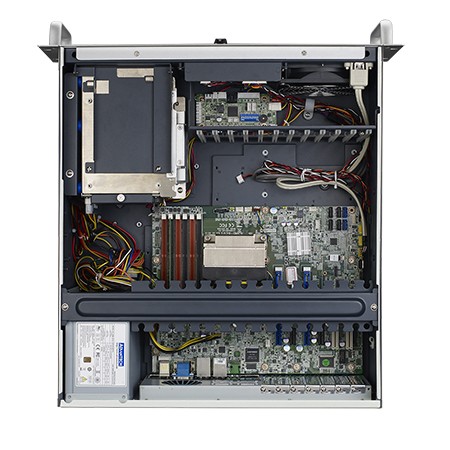

4U Rackmount Chassis for Full-size SHB/SBC or ATX/MicroATX Motherboard with 4 SAS/SATA HDD Trays

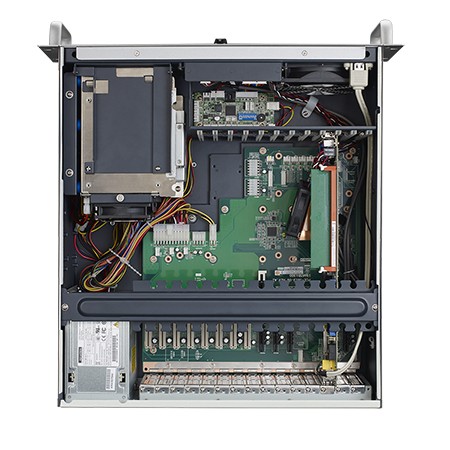

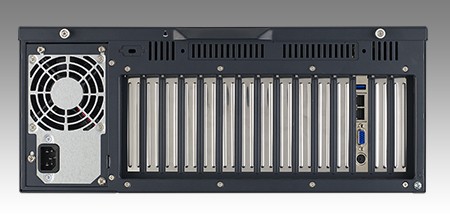

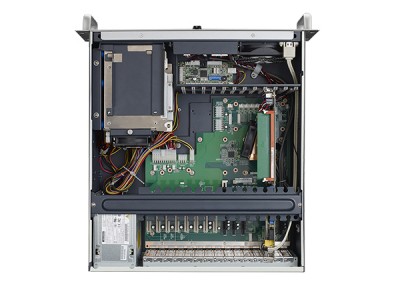

- 4U Rackmount Chassis supports a PICMG backplanes with up to 15 slots

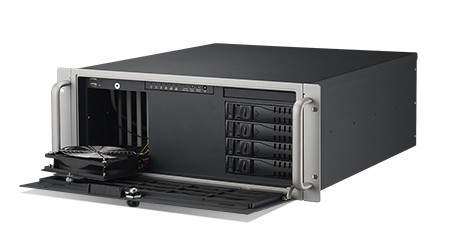

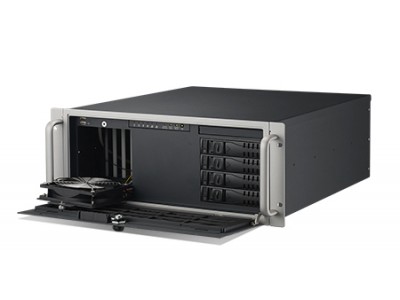

- Shock-resistant disk drive bay holds four hot-swap 3.5" and 2.5" SAS/SATA disk trays, one slim optical disk drive, and one 2.5" internal drive
- Equipped with dual front USB 3.0 ports
- Supports 80plus single and redundant power supply
- Front-accessible system fan without opening top cover for easy maintenance
- LED indicators and Smart fan speed control for system fans
| Cooling | Air Filter | Yes |
| Fan | 1 (12 cm /74 CFM) + 1 (8 cm/56 CFM) for SAS/SATA storage unit | |
| Disk Drive Bay | Slim ODD | 1 |
| 2.5" Internal | 1 | |
| Hots-swap External | 4 (compatible with 3.5" or 2.5" devices) | |
| Environment | Operational Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature | -40 ~ 70° C (-40 ~ 156° F) | |
| Operating Shock | 10 G (with 11 ms duration, half sine wave) | |
| Operating Humidity | 10 ~ 95% @ 40° C, non-condensing | |
| Non-Operating Humidity | 10 ~ 95% @ 60° C, non-condensing | |
| Operating Vibration (5 ~ 500 Hz) | 1 Grms | |
| Non-Operating Vibration (5 ~ 500 Hz) | 2 G | |
| Non-Operating Shock | - | |
| Front I/O Interface | USB3.0 | 2 |
| Intelligent System Module | Remote Monitoring | CPU/System fan speed , CPU/System temperature , motherboard voltage |
| Miscellaneous | LED Indicators | Power, HDD, temperature, fan, LAN1, and LAN2 |

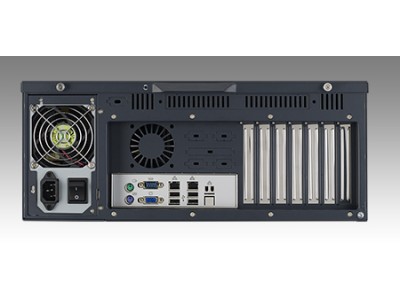

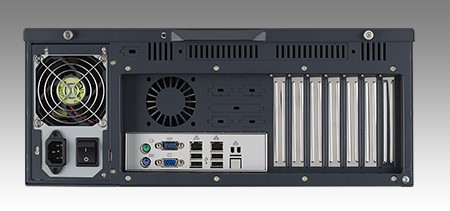

| Rear Panel | One 9-pin D-Sub opening | |
| Physical Characteristics | Weight | 12.5 kg (27.5 lb ) |
| Dimensions (W x H x D) | 482 x 177 x 479 mm (19" x 7" x 18.9") |
