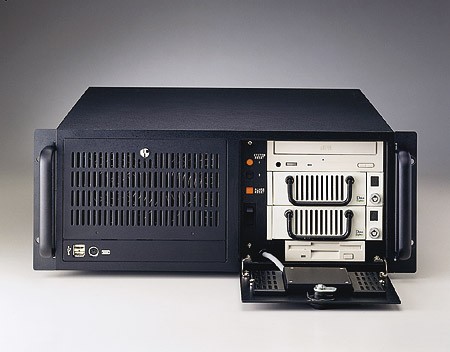

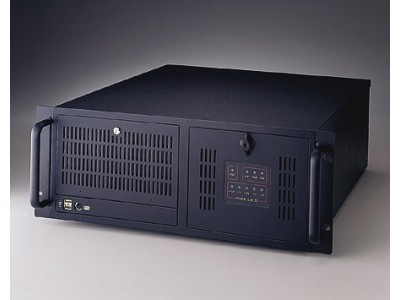

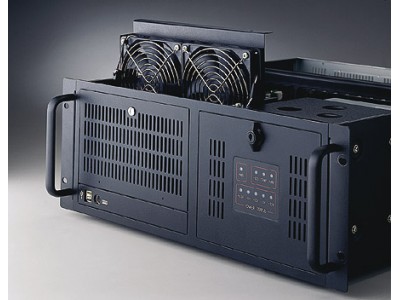

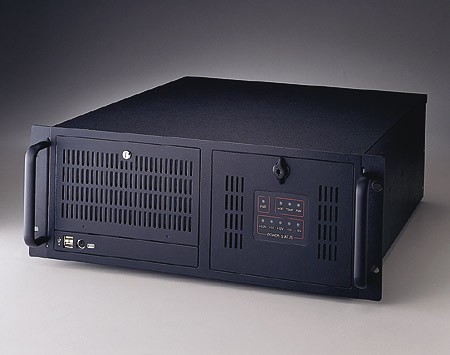

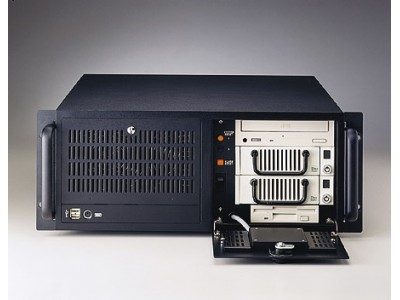

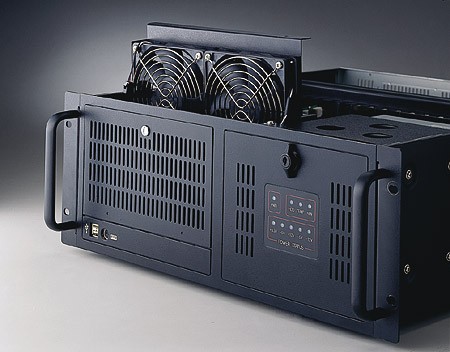

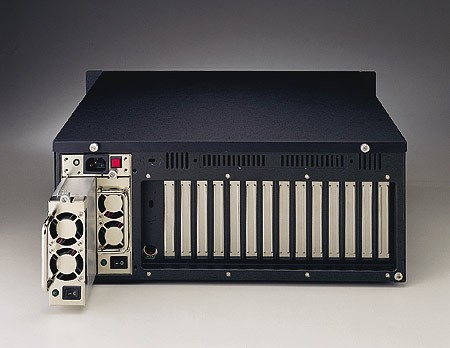

CHASSIS, ACP-4000BP Chassis w/300W PSU w/SMART Control BD (ACP-4000BP-30CE)
by Advantech
•Part #: ACP-4000BP-30CE
View Detailed Description
$271.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
- Supports either an ATX motherboard or a PICMG backplane with up to 15 slots
- Shock-resistant disk drive bay design holds up to three 5.25" and one 3.5" disk drives
- Front LED indicators and audible alarm notification for system fault detection
- Low noise system fans with fan speed control
- Built-in Intelligent System Module enables whole system fan control and remote manageability
| Cooling | System Fan | 2 (12 cm / 85 CFM each) |
| Air Filter | Yes | |
| Disk Drive Bay | 3.5" Front-Accessible | 1 |
| Drive Bay | 5.25" | 3 |
| Environment | Operational Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) | |
| Operating Vibration | 1 Grms | |
| Non-Operating Vibration | 2 G | |
| Operating Shock | 10 G (with 11 ms duration, half sine wave) | |
| Operating Humidity | 10 ~ 85% @ 40° C, non-condensing | |
| Non-Operating Humidity | 10 ~ 95% @ 40° C, non-condensing | |
| Non-Operating Shock | 30 G | |
| Front I/O Interface | PS/2 | 1 |
| Intelligent System Module | Remote Monitoring | CPU/System fan speed , CPU/System temperature , motherboard voltage |
| Miscellaneous | LED Indicators | Power, HDD, Temperature, FAN, and Power voltage Status |
| Rear Panel | One 9-pin D-Sub opening | |
| Physical Characteristics | Weight | 11.5 kg (25.3 lb) |
| Dimensions (W x H x D) | 482 x 88 x 451 mm (19'' x 3.5'' x 17.8'') | |
| Rear I/O Interface | USB2.0 | 2 |
