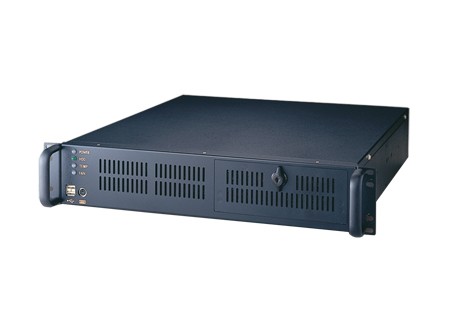

CHASSIS, ACP-2000 w/PCA-6105P4V w/SMART Control Board (ACP-2000P4-00BE)
by Advantech
•Part #: ACP-2000P4-00BE
View Detailed Description
$233.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
- 2U rackmount chassis supports up to 6 cards
- Butterfly backplane design
- Front-accessible USB and PS/2 connectors
- 250 W / 300 W AC ATX and DC power supply options
- Two 40 CFM cooling fans with air filter
- Lockable front door prevents unauthorized access
- System alarm notification by front LED indicators
| Cooling | Air Filter | Yes |
| Fan | 2 (8 cm / 47 CFM each) | |
| Disk Drive Bay | Slim ODD | 1 |
| 3.5" Front-Accessible | 2 | |
| Environment | Operational Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) | |
| Operating Vibration | 0.5 Grms | |
| Non-Operating Vibration | 2 G | |
| Operating Shock | 10G, half sine wave, 11 ms duration | |
| Operating Humidity | 10 ~ 85% @ 40° C, non-condensing | |
| Non-Operating Humidity | 10 ~ 95% @ 40° C, non-condensing | |
| Non-Operating Shock | 30 G | |
| Front I/O Interface | PS/2 | 1 |
| USB | 2 | |
| Intelligent System Module | Remote Monitoring | CPU/System fan speed , CPU/System temperature , motherboard voltage |
| Miscellaneous | LED Indicators | Power, HDD, temperature, fan |
| Rear Panel | One 9-pin D-Sub opening | |
| Physical Characteristics | Weight | 11.5 kg (25.3 lb) |
| Dimensions (W x H x D) | 482 x 88 x 451 mm (19'' x 3.5'' x 17.8'') |
Be the first to review this product!
