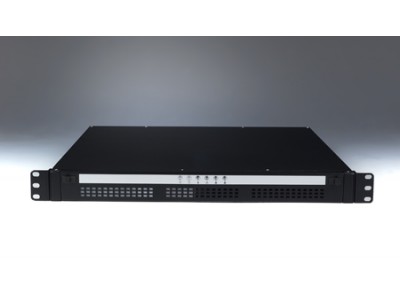

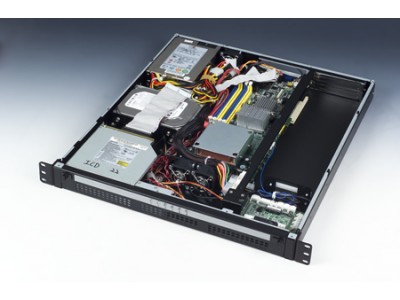

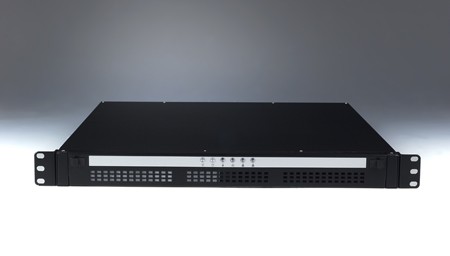

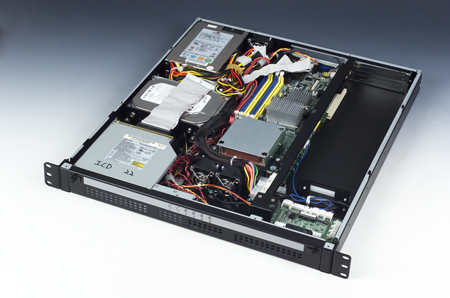

1U Rackmount Bare Chassis with 2 Slot Capacity, 3 HDD Bays - Backplane version (ACP-1010BP-00BE)
by Advantech
•Part #: ACP-1010BP-00BE
View Detailed Description
$215.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
1U Rackmount Chassis for Full-size SHB/SBC or ATX/MicroATX Motherboard with Dual SAS/SATA HDD Trays
- Space-saving 1U rackmount chassis, ideal building block for business expansion
- Supports full-size SHB/SBC
- LED indicators for LAN connectivity, alarm notification of power supply, HDD activity, system fan, and in-chassis temperature
- supports a slim ODD and two disk drives
- Supports up to 2 expansion slots in BP version
- Supports both 250 W/300 W ATX/PFC power supply
- Efficient cooling design prevents the system from over-heating
| Cooling | System Fan | 4 (4 cm/24 CFM x 3 + 15 CFM x 1) |
| Disk Drive Bay | Slim ODD | 1 |
| 3.5" Front-Accessible | 1 | |
| Environment | Operational Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) | |
| Operating Vibration | 0.5 Grms | |
| Non-Operating Vibration | 2 Grms | |
| Operating Shock | 10 G (with 11 ms duration, half sine wave) | |
| Operating Humidity | 10 ~ 85% @ 40° C, non-condensing | |
| Non-Operating Humidity | 10 ~ 95% @ 40° C, non-condensing | |
| Non-Operating Shock | 30 G | |

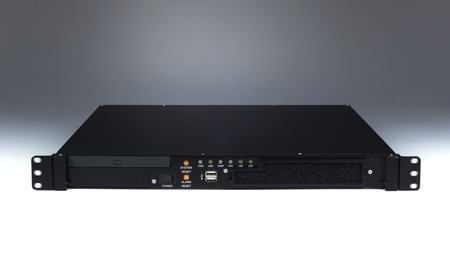

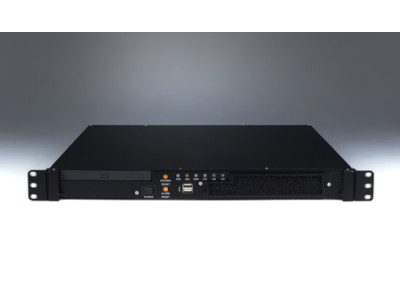

| Front I/O Interface | USB2.0 | 2 |
| Miscellaneous | LED Indicators | Power, HDD, temperature, fan, LAN1, and LAN2 |
| Control | Power / System reset / Alarm reset switch | |

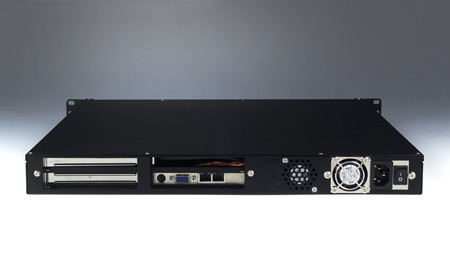

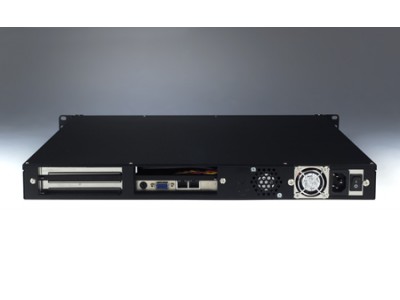

| Rear Panel | One 9-pin D-Sub opening | |
| Physical Characteristics | Weight | 8 kg (17.6 lb) |
| Dimensions (W x H x D) | 480 x 44 x 497 mm (19" x 1.7" x 19.6") |
