Compact Embedded 3.5" SBC Chassis (ACK-A001E)
by Advantech
•Part #: ACK-A001E
View Detailed Description
$50.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.

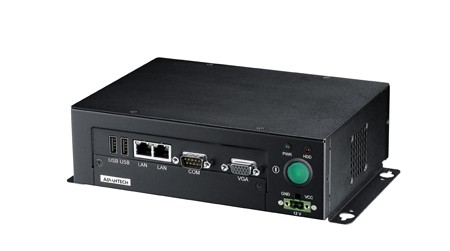

Compact Embedded 3.5" SBC Chassis
- 3.5" SBC chassis supports front & rear I/O interfaces
- Fanless system with wall-mount & desk mount support, w/ removable mounting flange
- Bottom door to access the solder side of the board
- Flexible cutout I/O in the rear bezel up to 4 x COM , 4 x USB, audio, and LPT/PS2/LVDS
- Easy assembly & maintenance of 2.5" hard disk
- Supports dedicated Advantech 3.5" SBCs: PCM-9362 or PCM-9363
- Versatile power supply options
| Certification | EMC | CE/FCC |
| Disk Drive Bay | 2.5" Internal | 1 |
| Environment | Operational Temperature | 0 ~ 40C (32 ~ 104F) |
| Humidity | 40C at 95% RH Non-Condensing | |
| Vibration Resistance | 1 Grms (w/o 2.5' HDD) | |
| Form Factor | Board | 3.5" SBC |

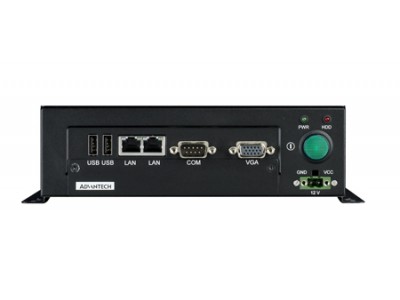

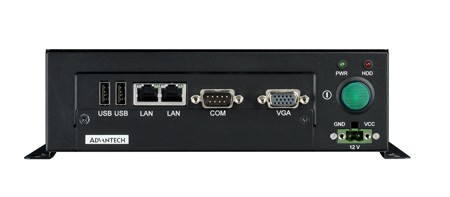

| Front I/O Interface | USB | 2 |
| COM | 1 (1xRS-232) | |
| VGA | 1 | |
| RJ-45 | 2 | |
| Miscellaneous | LED Indicators | Power, HDD |
| Control | Power switch (Push-on/off type) | |
| Physical | Dimension (mm) | 200 x 60 x 145 mm with mounting bracket: 230 x 65 x 145 mm |
| Weight | 0.95 kg (2.09 lb) | |

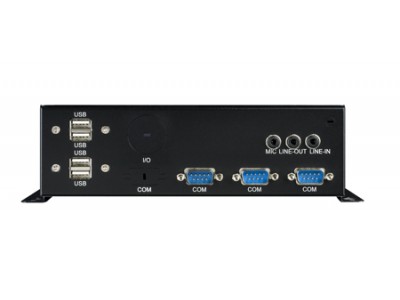

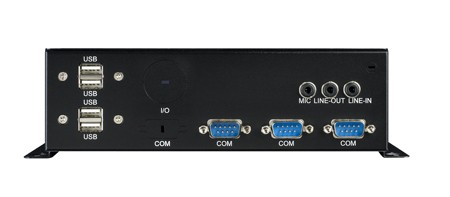

| Rear I/O Interface | COM | 2 (1 x RS-232, 1 x RS-232/422/485) |
| USB | 4 | |
| Audio | 3 (Mic-In, Line-Out, Line-in) | |
| Antenna | 1 | |
| Circular cutouts | 1 (Reserved for LVDS, PS/2 & LPT cable) |
